The utility SYSEXT is used to locate and test Natural Application Programming Interfaces (APIs) contained in the current system library SYSEXT either in a local Windows environment or in a remote environment located on a Windows, a Linux, or a mainframe platform.
A Natural API is a Natural subprogram (cataloged object) that is used for accessing and possibly modifying data or performing services that are not accessible by Natural statements. Natural APIs refer to Natural, a subcomponent or a subproduct.
The SYSEXT Utility - Natural Application Programming Interfaces documentation covers the following topics:
Application Programming Interfaces - Natural Security documentation
SYSAPI - APIs of Natural Add-on Products - Utilities documentation
The Enable Plug-ins option must be selected. This option is selected by default. For details, see Workspace Options in the section Setting the Options in the Using Natural Studio documentation.
For each Natural API, the utility SYSEXT provides a functional description, one example program and API-specific keywords.

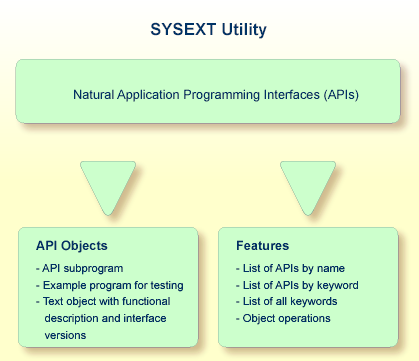

The following diagram is an overview of the Natural objects and major features SYSEXT provides:
The types of Natural object typically provided for each Natural API are listed in the following section. Additional objects that might exist for a particular API are not covered.
All API-related objects are contained in the library SYSEXT on the system file FNAT.
In the following table, nnnn denotes the 4-digit number to identify the API as well as the corresponding example program and text object.
| Object Name | Explanation |
|---|---|
| USRnnnnN | The API subprogram (cataloged object) that performs the designated function. |
| USRnnnnP |
An example program (source object) that can be used to test the effect of the API. The example program invokes the corresponding subprogram USRnnnnN. |
| USRnnnnT |
A text object that contains a description of the corresponding API. The description comprises purpose, function and calling conventions of the API and relevant keywords, category and interface versions. |
For some APIs, copycodes are available which provide functions related to the API. The
copycodes are named USRnnnnX, where
X is an identification character (such as
"Z", "Y" etc.).
Caution
Do not modify the source objects EXT-XML1 and EXT-XML2. They
are required for configuring the SYSEXT utility and intended for Software AG internal
use only.
This section provides instructions for invoking and terminating the SYSEXT utility.
To invoke SYSEXT
Enter the following system command:
SYSEXT
Or:
From the menu, select .
When invoking SYSEXT, the plug-in for the utility SYSEXT is activated and the SYSEXT utility window appears with the root node SYSEXT - Application Programming Interfaces as shown in the example below:
To restart SYSEXT
If you want to restart SYSEXT during the current Natural session, as an alternative to the start methods mentioned above, from the toolbar, choose the following icon:
This icon appears after initially invoking SYSEXT, when the plug-in for the utility SYSEXT is activated.
To terminate SYSEXT
Choose the standard Windows close function.
This section describes the nodes and items contained in the tree view of the SYSEXT utility window.

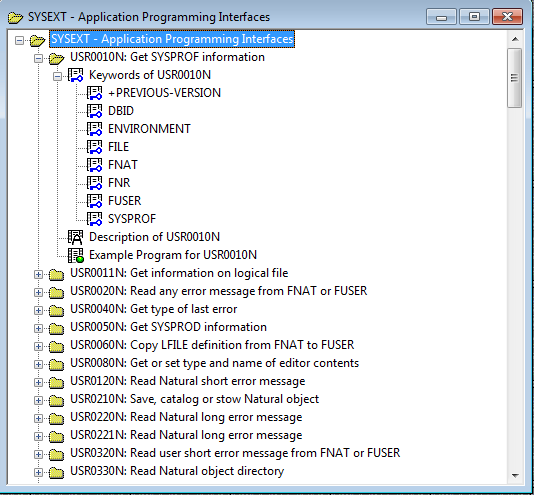

If you expand all tree nodes, the tree looks similar to the example below:
Each Natural API is represented by an API node that contains the example program, description and keywords that relate to this API. The API node name consists of the name of the API subprogram (USRnnnnN) and a brief description of its functional purpose. The nodes are sorted by API names.
The following items are provided in an API node:
| Item | Explanation |
|---|---|
| Keywords | All keywords relevant to the API. See also the functions Select Keyword and List All Keywords in Performing SYSEXT Utility Functions. |
| Description | A text object (USRnnnnT) that contains a description of the API. The description comprises purpose, function and calling conventions of the API and keywords relevant to the API. |
| Example Program | An example program (source object USRnnnnP) of how to invoke the API. |
The SYSEXT utility functions can be used to perform operations on API-specific text objects (descriptions) and example programs or find APIs relevant to a current task by specifying a keyword.
Object operations include functions such as List, Open and Execute, which correspond to the standard functions available when maintaining or executing a Natural object of the type text or program. These functions can be performed by using the context menu associated with each object. For details of these functions, refer to the relevant sections in the Using Natural Studio documentation.
The section below covers the following topics:
This function is used to list APIs by keyword.
To list APIs by keyword
Select the root node SYSEXT - Application Programming Interfaces, open the context menu and choose or press SHIFT+K.
The Select Keyword window appears.
From the drop-down list box, select a keyword as shown in the example below:
Choose the button.
The root node SYSEXT - Application Programming Interfaces with Keyword appears for the selected keyword.

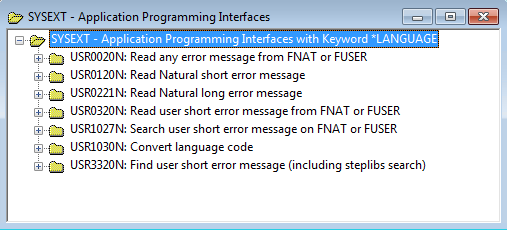

The nodes of all APIs to which the specified keyword applies are displayed as
shown in the example of keyword *LANGUAGE below:
If desired, to return to the display of all API nodes (default setting), in the
Select Keyword window, select the asterisk
(*).
This function is used to list all keywords for the APIs available in the current system environment.
To list all API keywords
Select the root node SYSEXT - Application Programming Interfaces, open the context menu and choose or press SHIFT+A.
The All Keyword window appears as an additional window with the root node SYSEXT - All Keywords of Application Programming Interfaces.

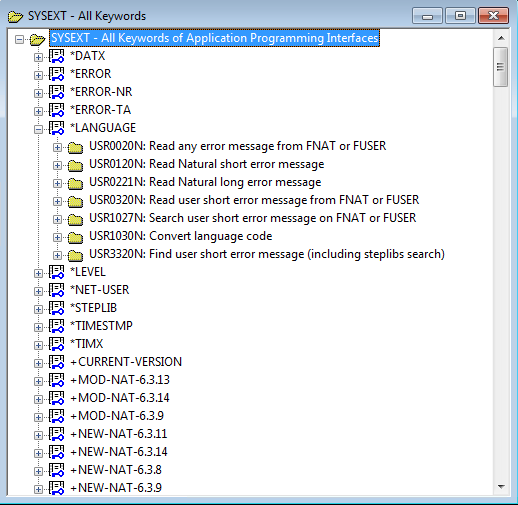

A list of all keywords is displayed as shown in the example below:
This function updates API information in the tree view using the data from the objects contained in the current library SYSEXT. The refresh is only required if an API description or a keyword was modified or if a text object was removed.
Note
Do not modify the source objects EXT-XML1 and EXT-XML2. They are required
for configuring the SYSEXT utility and intended for Software AG internal use
only.
To refresh API information
Select the root node SYSEXT - Application Programming Interfaces, open the context menu and choose or press SHIFT+R.
A Refresh window appears.
If you access a remote environment on a mainframe, you must specify the parameter
SORT in the map environment settings as indicated
below:
SORT=(WRKSIZE=50)
For details on mapping a server, see Accessing a Remote Development Environment in
the documentation Remote Development Using SPoD. For details
on SORT, refer to the Parameter
Reference of Natural for Mainframes.
Choose the button to confirm the refresh or choose to abort the operation.
Interface versions can be seen as a collection of APIs with (almost) the same functionality but with differently extended parameter specifications. Thus, they cover a development cycle to be kept explicit for sake of compatibility (of later versions with earlier versions).
If an API has interface versions, they are displayed in the corresponding text object
USRnnnnT. Interface versions are ordered within a list
according to the version they belong to. The rightmost element belongs to the current
version. This status is expressed by the reserved keyword +CURRENT-VERSION.
All other elements belong to a previous version and are marked with the reserved keyword
+PREVIOUS-VERSION. APIs without interface versions are called unique.
APIs with interface versions are displayed intensified on the menu.
Reserved keywords refer to meta information on APIs, for example the Natural version in
which an API has been added. Reserved keywords always start with a plus sign
(+). See the table below for a description:
| Reserved Keyword | Description |
|---|---|
| +CURRENT-VERSION | The current version of an API with interface versions (see Interface Versions). |
| +PREVIOUS-VERSION | A previous version of an API with interface versions (see Interface Versions). |
| +NEW-PROD-version | An API that has been added to a specific product in a specific
version. For example, +NEW-NAT-6.3.11 refers to an API that has been added to the product
Natural in version 6.3.11.
|
| +MOD-PROD-version | An API that belongs to a specific product and has been
modified in a specific version. For example, +MOD-NAT-6.3.12 refers to an
API that belongs to product Natural and has been modified in version 6.3.12.
|
If you want to use a Natural API contained in the system library SYSEXT, perform one of the following steps:
Define the system library SYSEXT in the system file FNAT as a steplib library for the user library that contains the Natural objects that use this API. Thus, no API-specific actions are required when upgrading your Natural version.
Copy the required API to the system library SYSTEM in the system file FNAT. Thus, you only need to check a single library for APIs when upgrading your Natural version.
Copy the required API to the system library SYSTEM in the system file FUSER (not recommended).
Copy the required API to the user library (or one of its steplibs) in the system file FUSER which contains the Natural objects that use this API (not recommended).
An API can only be used in the Natural version with which it is delivered. It is strongly recommended to store the APIs only in the FNAT system file. This will ensure that the right version is always executed.
To make use of an interface
In the calling program, use the DEFINE
DATA statement to specify the parameters listed in the text
object USRnnnnT of that API. In the
example program USRnnnnP, the parameters
are defined within the DEFINE DATA
LOCAL statement. Alternatively, you can specify the
parameters outside the calling program in a separate LDA (Local Data Area) or PDA
(Parameter Data Area), with a DEFINE DATA LOCAL USING statement
referencing that data area.
Enter the following statement:
CALLNAT 'USRnnnnN' parameters
For further information, see the CALLNAT statement in the Statements documentation.
Note
Non-standard usage is always documented in the respective text object
USRnnnnT.
If you want to use a Natural copycode contained in the system library SYSEXT, perform the following step:
Copy the required copycode to the user library in the system file FUSER which contains the Natural objects that use this copycode.
To make use of a copycode
In the calling program, use the INCLUDE statement to specify the parameters listed in
the text object USRnnnnT of that API or in
the copycode itself. In the example program
USRnnnnP, the parameters are defined
within the DEFINE DATA
LOCAL statement. Alternatively, you can specify the parameters
outside the calling program in a separate LDA (Local Data Area) or PDA (Parameter
Data Area), with a DEFINE DATA LOCAL USING statement referencing that
data area.
Some copycodes require additional data definitions. These are described in the
text object USRnnnnT of the API and in the
copycode itself.
Enter the following statement:
INCLUDE USRnnnnX 'parameter'...
For further information, see the INCLUDE statement in the Statements documentation.
Note
Non-standard usage is always documented in the respective text object
USRnnnnT.
The following list of Natural Application Programming Interfaces (APIs) available with the SYSEXT utility is for general information only. For the current status of APIs, execute the system command SYSEXT.
For detailed information on the use of APIs that apply to Natural Remote Procedure Call (RPC), refer to the section Application Programming Interfaces for Use with Natural RPC in the Natural Remote Procedure Call documentation.
| Interface | Description | Product | Category | Keyword |
|---|---|---|---|---|
| USR0010N | Get SYSPROF information | NAT | SYSTEM COMMANDS | DBID, ENVIRONMENT, FILE, FNAT, FNR, FUSER, SYSPROF |
| USR0011N | Get information on logical file | NAT | SYSTEM FILES | DBID, FNAT, FNR, FUSER, LFILE, SYSPROF |
| USR0020N | Read any error message from FNAT or FUSER | NAT | ERROR MESSAGES | *ERROR-NR, *LANGUAGE, ERROR, FNAT, FUSER, SYSERR |
| USR0040N | Get type of last error | NAT | ERROR HANDLING | *ERROR-NR, ERROR |
| USR0050N | Get SYSPROD information | NAT | SYSTEM COMMANDS | ENVIRONMENT, SYSPROD |
| USR0060N | Copy LFILE definition from FNAT to FUSER | NAT | SYSTEM FILES | FNAT, FNR, FUSER, LFILE |
| USR0080N | Get or set type and name of editor contents | NAT | EDITOR | EDITOR, NAME, OBJECT NAME, OBJECT TYPE, TYPE |
| USR0120N | Read Natural short error message | NAT | ERROR MESSAGES | *ERROR-NR, *LANGUAGE, ERROR, FNAT, SYSERR |
| USR0210N | Save, catalog or stow Natural object | NAT | NATURAL OBJECTS | CAT, EDITOR, ESIZE, OBJECT TYPE, SAVE, STOW, TYPE |
| USR0220N | Read Natural long error message | NAT | ERROR MESSAGES | *ERROR-NR, ERROR, FNAT, SYSERR |
| USR0221N | Read Natural long error message | NAT | ERROR MESSAGES | *ERROR-NR, *LANGUAGE, ERROR, FNAT, SYSERR |
| USR0320N | Read user short error message from FNAT or FUSER | NAT | ERROR MESSAGES | *ERROR-NR, *LANGUAGE, ERROR, FNAT, FUSER, SYSERR |
| USR0330N | Read Natural object directory | NAT | NATURAL OBJECTS | DIRECTORY |
| USR0360N | Modify user short error message on FNAT or FUSER | NAT | ERROR MESSAGES | *ERROR-NR, ERROR, FNAT, FUSER, SYSERR |
| USR0420N | Read user long error message from FUSER | NAT | ERROR MESSAGES | *ERROR-NR, ERROR, FUSER, SYSERR |
| USR0421N | Maintain user long error message on FUSER | NAT | ERROR MESSAGES | ERROR, FUSER, SYSERR |
| USR0500N | Define title of window | NAT | WINDOW HANDLING | TITLE, WINDOW |
| USR0600N | Get program level information | NAT | RUNTIME | *LEVEL |
| USR0610N | Get error information on last database call | NAT | ERROR HANDLING | *ERROR, DATABASE, ERROR |
| USR0620N | Convert string into ASCII or EBCDIC code | NAT | DATA HANDLING | ASCII, EBCDIC, LOWER CASE, TRANSLATE, UPPER CASE |
| USR0622N | Reset error counter in ON ERROR statement block | NAT | ERROR HANDLING | *ERROR-NR, ERROR, COUNTER |
| USR1002N | Save or restore Natural environment parameters | NAT | NATURAL ENVIRONMENT | ENVIRONMENT, PARAMETER |
| USR1005N | Get information on certain Natural session parameters | NAT | SESSION PARAMETERS | SESSION PARAMETER, PARAMETER, GLOBALS, NATPARM, AUTO, CC, CF, CPCVERR, CPU TIME LIMIT, DAY DIFFERENTIAL, DBUPD, DC, DD, DELETE, DELETE PROGRAMS, DFOUT, DFSTACK, DFTITLE, DO, DTFORM, DYNPARM, EJ, ERROR-TA, FCDP, FS, IA, ID, IM, LANGUAGE CODE, LE, LOWER-UPPER CASE, LS, LT, MADIO, MAXCL, MAXIMUM CPU TIME, MESSAGE LINE, ML, MT, NATURAL COMMANDS, NC, OPF, PF-KEY LINE, PM, PS, RECAT, REINP, RELEASE ISN, RI, SA, SF, SL, SM, STATUS LINE, STEPLIB, STRUCTURED MODE, TD, THSEPCH, TIME DIFFERENTIAL, TIMEZONE, TQMARK, TS, UDB, UPDATE COMMAND, WH, ZD, ZP |
| USR1009N | Convert store clock with sliding window into microseconds | NAT | DATE / TIME SUPPORT | *TIMESTMP, CONVERSION, DATE, MICROSECONDS, SLIDING WINDOW, STORE CLOCK, TIME |
| USR1011N | Check name for wildcard or asterisk notation | NAT | DATA HANDLING | ASTERISK, MASK, NAME, WILDCARD |
| USR1012N | Get dynamic error message parts from the last error | NAT | ERROR MESSAGES | *ERROR-NR, DYNAMIC, ERROR, SYSERR |
| USR1013N | Display current character set | NAT | CODE PAGE SUPPORT | EBCDIC, ASCII |
| USR1016N | Get error level for error in nested copycodes | NAT | RUNTIME | *ERROR-NR, *ERROR-TA, *LEVEL, COPYCODE, INCLUDE |
| USR1020N | Add user short error message to FUSER | NAT | ERROR MESSAGES | *ERROR-NR, ERROR, FUSER, SYSERR |
| USR1021N | Check name for wildcard or asterisk notation | NAT | DATA HANDLING | ASTERISK, MASK, NAME, WILDCARD |
| USR1022N | Get type of database | NAT | DATABASE | DATABASE, DBID, LFILE, TYPE |
| USR1023N | Convert time-related variables | NAT | DATE / TIME SUPPORT | *DATX, *TIMESTMP, *TIMX, CONVERSION, COPYCODE-INTERFACE, DATE, MICROSECONDS, STORE CLOCK, TIME |
| USR1025N | Maintain definition of multiple steplibs | NAT | STEPLIBS | *STEPLIB, LIBRARY, STEPLIB |
| USR1026N | Get information on RETURN data | NAT | RUNTIME | RETURN, SETUP |
| USR1027N | Search user short error message on FNAT or FUSER | NAT | ERROR MESSAGES | *LANGUAGE, ERROR, FNAT, FUSER, SYSERR |
| USR1028N | Convert bits and bytes | NAT | DATA HANDLING | BIT, BYTE |
| USR1029N | Get type of Natural object | NAT | NATURAL OBJECTS | OBJECT TYPE, TYPE |
| USR1030N | Convert language code | NAT | DATA HANDLING | *LANGUAGE |
| USR1031N | Check Natural object name | NAT | DATA HANDLING | NAME, OBJECT NAME |
| USR1032N | List cataloged Natural objects with type | NAT | NATURAL OBJECTS | NAME, OBJECT NAME, OBJECT TYPE, TYPE |
| USR1033N | Find DBID and FNR of a cataloged DDM | NAT | DDMS | DBID, DDM, FNR |
| USR1034N | Get NTTF file table with translated DBID and FNR | NAT | SYSTEM FILES | DBID, FNR, NTTF, TF, TRANSLATE |
| USR1035N | Maintain objects using the Software AG editor engine | NAT | EDITOR | BUFFER, EDITOR, SAG EDITOR, SOURCE |
| USR1036N | Maintain user profile of the Software AG editor | NAT | EDITOR | BUFFER, EDITOR, PROFILE, SAG EDITOR, SOURCE |
| USR1038N | Get platform-specific information | NAT | NATURAL ENVIRONMENT | ASCII, BYTE SWAPPING, CHECK, EBCDIC, ENVIRONMENT, GUI, PLATFORM |
| USR1039N | Modify the clipboard | NAT | DATA HANDLING | CLIPBOARD |
| USR1040N | Get or set profile parameter UDB | NAT | PROFILE PARAMETERS | DBID, DDM, GET, SET, UDB |
| USR1041N | Install error transaction program (*ERROR-TA) | NAT | ERROR HANDLING | *ERROR-NR, *ERROR-TA, ERROR |
| USR1042N | Get or set value of UPDATE command | NAT | DATABASE | DBUPD, GET, SET, UPDATE |
| USR1043N | Perform Adabas direct calls | NAT | DATABASE | ADABAS, DATABASE, DDM, FILE |
| USR1048N | Modify PF-key labels | NAT | NATURAL ENVIRONMENT | PF-KEY |
| USR1050N | Get or set work file name | NAT | WORK FILE / PRINTER | GET, SET, WORK FILE |
| USR1052N | Send a command to the operating system | NAT | RUNTIME | COMMAND, EXTERNAL |
| USR1053N | Get the value of an environment variable | NAT | NATURAL ENVIRONMENT | ENVIRONMENT, GET, VARIABLE |
| USR1054N | List libraries | NAT | NATURAL OBJECTS | FNAT, FUSER, LIBRARY, LIST, SYSTEM FILE |
| USR1055N | List objects in a library | NAT | NATURAL OBJECTS | FNAT, FSEC ENABLED, FUSER, LIST, MODULE, SOURCE, SYSTEM FILE |
| USR1056N | List DDMs on the FDIC file or in a library | NAT | DDMS | DDM, FDIC, FNAT, FSEC ENABLED, FUSER, LIST, MODULE, SOURCE, SYSTEM FILE |
| USR1057N | Read a Natural source code into an array | NAT | NATURAL OBJECTS | FNAT, FSEC ENABLED, FUSER, READ, SOURCE, SYSTEM FILE |
| USR1058N | Read a DDM source code into an array | NAT | DDMS | DDM, FDIC, FNAT, FSEC ENABLED, FUSER, READ, SOURCE, SYSTEM FILE |
| USR1059N | Initialize the Natural Reporter interface | NAT | REPORTER | INITIALIZE, REPORTER |
| USR1060N | Terminate the Natural Reporter interface | NAT | REPORTER | REPORTER, TERM, TERMINATE |
| USR1061N | Open an existing report layout | NAT | REPORTER | OPEN, REPORTER |
| USR1062N | Close a report | NAT | REPORTER | CLOSE, REPORTER |
| USR1063N | Select printer to print a report | NAT | REPORTER | PREVIEW, PRINT, PRINTER, REPORTER, SELECT |
| USR1064N | Print a report | NAT | REPORTER | PRINT, REPORTER |
| USR1065N | Preview a report | NAT | REPORTER | PREVIEW, REPORTER |
| USR1066N | Enable or disable the Natural message 'Executing ...' | NAT | ERROR HANDLING | EXECUTING, MESSAGE |
| USR1067N | Check Natural library name | NAT | DATA HANDLING | CHECK, LIBRARY, NAME |
| USR1068N | Maintain the number of DBMS calls, MAXCL and MADIO parameters | NAT | DATABASE | COUNTER, DATABASE, GET, MADIO, MAXCL, SET |
| USR1069N | Get or set a printer configuration | NAT | WORK FILE / PRINTER | GET, PRINTER, SET |
| USR1071N | Set credentials for RPC server | RPC | RPC - SECURITY | PASSWORD, RPC, SECURITY, TICKET, USER ID |
| USR1072N | Get command ID of a retain set | NAT | DATABASE | CID, COMMAND ID, RETAIN SET |
| USR2001N | Get information on last error | NAT | ERROR HANDLING | ERROR |
| USR2004N | Get information on logical file | NAT | SYSTEM FILES | DBID, FNAT, FNR, FUSER, LFILE, SYSPROF |
| USR2005N | Read internal file translation table | NAT | PROFILE PARAMETERS | NTTF |
| USR2006N | Get information from error message collector | NAT | ERROR MESSAGES | ERROR, *ERROR-NR |
| USR2007N | Get or set data for RPC default server | RPC | RPC | RPC, SERVER |
| USR2009N | Get dynamic error message parts from the last error | NAT | ERROR MESSAGES | *ERROR-NR, DYNAMIC, ERROR, SYSERR |
| USR2010N | Get error information on last database call | NAT | ERROR HANDLING | *ERROR, DATABASE, ERROR |
| USR2011N | Get or set work file name | NAT | WORK FILE / PRINTER | GET, SET, WORK FILE |
| USR2012N | Get system variable *NET-USER | NAT | NATURAL ENVIRONMENT | GET, *NET-USER |
| USR2013N | Get SYSPROF information | NAT | SYSTEM COMMANDS | DBID, ENVIRONMENT, FILE, FNAT, FNR, FUSER, SYSPROF |
| USR2014N | Maintain objects using the Software AG editor engine | NAT | EDITOR | BUFFER, EDITOR, SAG EDITOR, SOURCE |
| USR2018N | Read Natural object directory | NAT | NATURAL OBJECTS | DIRECTORY |
| USR2019N | Read or save Natural source code from/to the source area | NAT | EDITOR | EDITOR, FNAT, FSEC ENABLED, FUSER, READ, SAVE, SYSTEM FILE |
| USR2023N | Get type of database | NAT | DATABASE | DATABASE, DBID, LFILE, TYPE |
| USR2026N | Get TECH information | NAT | SYSTEM COMMANDS | ENVIRONMENT, ERROR, STEPLIB, TECH |
| USR2027N | Define wait interval for current session | NAT | RUNTIME | WAIT |
| USR2030N | Get dynamic error message parts from the last error | NAT | ERROR MESSAGES | *ERROR-NR, DYNAMIC, ERROR, SYSERR |
| USR2031N | Get SYSPROD information | NAT | SYSTEM COMMANDS | ENVIRONMENT, SYSPROD |
| USR2032N | Support commit for CLOSE CONVERSATION | RPC | RPC | CLIENT, CLOSE, CONVERSATION, RPC |
| USR2035N | Get or set parameters for SSL support | RPC | RPC | CLIENT, ENTIREX, RPC, SERVER, SSL |
| USR2036N | Convert binary variable (B8) into numeric variable (P20) | NAT | DATE / TIME SUPPORT | B8, BINARY, CONVERSION, COPYCODE-INTERFACE, NANOSECONDS, STORE CLOCK, TIME |
| USR2071N | Support EntireX Security on client side | RPC | RPC - SECURITY | CLIENT, ENTIREX, PASSWORD, PASSWORD PHRASE, RPC, SECURITY |
| USR2072N | Support EntireX Security on server side | RPC | RPC - SECURITY | ENTIREX, PASSWORD, PASSWORD PHRASE, RPC, SECURITY, SERVER |
| USR2073N | Ping or terminate a Natural RPC server | RPC | RPC | PING, RPC, SERVER, TERMINATE |
| USR2074N | Set new password for Natural Security user in RPC context | RPC | RPC - SECURITY | NEWPASSW, RPC, SERVER |
| USR2075N | Terminate EntireX Broker service | RPC | RPC | BROKER SERVICE, ENTIREX, RPC, SERVER, TERMINATE |
| USR2076N | Get or set RPC TIMEOUT value | RPC | RPC | GET, RPC, SET, TIMEOUT |
| USR3004N | Maintain internal Fast Locate Table | NAT | SERVER | BUFFER POOL, CLEAR, CLIENT, FAST, LOCATE, SERVER, TABLE |
| USR3013N | Get SYSPROF information | NAT | SYSTEM COMMANDS | DBID, ENVIRONMENT, FILE, FNAT, FNR, FUSER, SYSPROF |
| USR3025N | Maintain definition of multiple steplibs | NAT | STEPLIBS | *STEPLIB, LIBRARY, STEPLIB |
| USR3320N | Find user short error message (including steplibs search) | NAT | ERROR MESSAGES | *ERROR-NR, *LANGUAGE, ERROR, FNAT, FUSER, STEPLIB, SYSERR |
| USR4003N | Get Natural stack information | NAT | RUNTIME | STACK |
| USR4004N | Get dynamic Natural profile parameters at session start | NAT | PROFILE PARAMETERS | DYNAMIC, PARAMETER, PROFILE |
| USR4005N | Read all current PF-key settings | NAT | NATURAL ENVIRONMENT | KEY SETTING, PF-KEY |
| USR4007N | Get or set profile parameter SYNERR | NAT | PROFILE PARAMETERS | GET, SET, SYNERR |
| USR4008N | Set library for RPC execution | RPC | RPC | LOGON, RPC, SERVER |
| USR4009N | Set parameters for EntireX | RPC | RPC | CLIENT, RPC, SERVER |
| USR4010N | Get runtime settings of RPC server | RPC | RPC | RPC, RUNTIME, SERVER, SETTING |
| USR4011N | Create a hash value using SHA-1 | NAT | DATA HANDLING | HASH, METHOD, SECURITY, SHA-1 |
| USR4012N | Set application error on RPC server | RPC | RPC | ENTIREX, RPC, SERVER |
| USR4025N | Maintain definition of multiple steplibs in Natural Security | NAT | STEPLIBS | *STEPLIB, LIBRARY, STEPLIB |
| USR4201N | Maintain data area sources | NAT | EDITOR | DATA AREA, GDA, FSEC ENABLED, LDA, PDA, SOURCE, SOURCE AREA |
| USR4206N | List objects in a library | NAT | NATURAL OBJECTS | FNAT, FSEC ENABLED, FUSER, LIST, MODULE, SOURCE, SYSTEM FILE |
| USR4208N | Read or write a Natural resource | NAT | RESOURCES | FSEC ENABLED, READ, RESOURCE, WRITE |
| USR4209N | Get short name of subroutine | NAT | NATURAL OBJECTS | LONG NAME, NAME, SUBROUTINE |
| USR4210N | Perform base64 conversion of alphanumeric and binary bytes | NAT | DATA HANDLING | ALPHA, BASE64, BINARY, CONVERSION, NETWORK, TCP/IP |
| USR4212N | Analyze data area | NAT | EDITOR | DATA AREA, FSEC ENABLED |
| USR4215N | Get list of resources in a Natural library | NAT | RESOURCES | FSEC ENABLED, LIST, RESOURCE |
| USR4217N | Send data to Optimize for Infrastructure | NAT | OPTIMIZE FOR INFRASTRUCTURE | DATA COLLECTOR, OPTIMIZE |
| USR4218N | Get information on Natural Development Server | NDV | SERVER | NDV, SERVER |
| USR4220N | Perform base64 conversion of alphanumeric and binary bytes | NAT | DATA HANDLING | ALPHA, BASE64, BINARY, CONVERSION, NETWORK, TCP/IP |
| USR4371N | Set credentials for RPC server (define user ID and ETID) | RPC | RPC - SECURITY | ETID, PASSWORD, RPC, SECURITY, TICKET, USER ID |
| USR5001N | Turn results window on/off | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW |
| USR5002N | Maintain bitmaps and icons for a tab | NAT | RESULT VIEW INTERFACE | BITMAP, ICON, RESULTS WINDOW |
| USR5003N | Maintain context menus for a tab | NAT | RESULT VIEW INTERFACE | CONTEXT MENU, RESULTS WINDOW |
| USR5004N | Maintain general layout of a tab | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW, TAB |
| USR5005N | Get or set active tab of results window | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW, TAB |
| USR5006N | Define UpdateCommandHandler and CommandHandler for tab | NAT | RESULT VIEW INTERFACE | COMMAND HANDLER, TAB, RESULTS WINDOW |
| USR5007N | Maintain checked and enabled state for a context menu item | NAT | RESULT VIEW INTERFACE | CONTEXT MENU, RESULTS WINDOW |
| USR5008N | Maintain columns of a tab | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW, TAB COLUMN |
| USR5009N | Get number of columns or rows of a tab | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW, TAB COLUMN, TAB ROW |
| USR5010N | Maintain default column width and specific column width | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW, TAB COLUMN, WIDTH |
| USR5011N | Maintain rows of a tab | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW, TAB ROW |
| USR5012N | Get or set data of a tab | NAT | RESULT VIEW INTERFACE | DATA, RESULTS WINDOW |
| USR5013N | Maintain checked state of row(s) | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW, TAB ROW |
| USR5014N | Maintain selected row(s) | NAT | RESULT VIEW INTERFACE | RESULTS WINDOW, TAB ROW |
| USR5015N | Get or set row of focus; scroll row into visible area | NAT | RESULT VIEW INTERFACE | FOCUS, RESULTS WINDOW, TAB ROW |
| USR5016N | Get or set data for UpdateCommandHandler and CommandHandler | NAT | RESULT VIEW INTERFACE | COMMAND HANDLER, DATA, RESULTS WINDOW |
| USR5017N | Copy selected row(s) to clipboard | NAT | RESULT VIEW INTERFACE | CLIPBOARD, RESULTS WINDOW |
| USR6001N | Call external XSLT processor | NAT | RUNTIME | XML, XSLT |
| USR6002N | Get the current values of internal counters | NAT | RUNTIME | COUNTER, GET, LT, MADIO, MAINPR, MAXCL, RUNTIME |
| USR6003N | Maintain type/name/library of program editor active window | NAT | EDITOR | EDITOR, NAME, OBJECT NAME, OBJECT TYPE, TYPE |
| USR6004N | Access the program editor active window | NAT | EDITOR | DELETE, EDITOR, GET, GOTO, INSERT, LINES, TEXT |
| USR6005N | Get information on program editor active window | NAT | EDITOR | ACTIVE, EDITOR, INFORMATION, WINDOW |
| USR6006N | Get path to system file | NAT | SYSTEM FILES | DBID, FNAT, FNR, FUSER, PATH, SYSTEM FILE |
| USR6007N | Get information on last error in Tamino database | NAT | ERROR HANDLING | ERROR, TAMINO |
| USR6008N | Get data of object in source area | NAT | EDITOR | LIBRARY, MODE, NAME, SOURCE AREA, TYPE |
| USR6009N | Maintain Natural buffer pool | NAT | BUFFER POOL | BUFFER POOL |
| USR6201N | Write source to Natural Development Server | NDV | SERVER | DDM, ERROR MESSAGE, NDV, SERVER, SOURCE |
| USR6202N | Get or set value of an environment variable | NAT | NATURAL ENVIRONMENT | ENVIRONMENT, GET, SET, VARIABLE |
| USR6203N | Maintain a resource in a Natural library | NAT | RESOURCES | CREATE, GET, PATH, RESOURCE |
| USR6204N | Set profile parameter PROGRAM | NAT | PROFILE PARAMETERS | BACKEND, PARAMETER, PROFILE, PROGRAM, SET |
| USR6303N | Get Natural stack information | NAT | RUNTIME | STACK |
| USR6304N | Get or set reliable state for RPC execution | RPC | RPC - RELIABLE RPC | CLIENT, RELIABLE, RPC, UOW |
| USR6305N | Commit or rollback reliable RPC messages | RPC | RPC - RELIABLE RPC | CLIENT, COMMIT, RELIABLE, ROLLBACK, RPC, UOW |
| USR6306N | Get status of UOWs of current EntireX Broker user | RPC | RPC - RELIABLE RPC | CLIENT, RELIABLE, RPC, UOW |
| USR6307N | Get or set Request Document timeout value (RQTOUT) | NAT | PROFILE PARAMETERS | GET, SET, REQUEST DOCUMENT, TIMEOUT |
| USR6308N | Retrieve system files defined in Natconf.cfg | NAT | NATURAL ENVIRONMENT | NATCONF, PATH, SYSTEM FILE |
| USR8208N | Terminate EntireX Broker service | RPC | RPC | BROKER SERVICE, ENTIREX, RPC, SERVER, SHUTDOWN-SERVICE, TERMINATE |
| USR8210N | Maintain Natural Profiler monitoring | NAT | PROFILER | PROFILER, TRACE |
| USR8213N | Shutdown server with sequence number on EntireX Broker | RPC | RPC | BROKER SERVER, ENTIREX, RPC, SEQUENCE NUMBER, SERVER, SHUTDOWN, SHUTDOWN-SERVER, TERMINATE |
| USR8215N | Get the Natural and NSC version | NAT | NATURAL ENVIRONMENT | NATVERS, NSC, SECURITY, VERSION |
| USR8216N | Maintain the RPC service directory | RPC | RPC | MAINTENANCE, NATCLTGS, RPC, SERVICE DIRECTORY |
| USR8217N | Search execution library for a Natural object | NAT | NATURAL ENVIRONMENT | EXECUTING, LIBRARY, STEPLIB |
| USR8219N | Perform Adabas direct calls using ACBX protocol | NAT | DATABASE | ACBX, ADABAS, DATABASE, DDM, FILE |
| USR8220N | Trigger termination of current RPC server | RPC | RPC | RPC, SERVER, TERMINATE |
| USR8221N | Generate codepage translation table | NAT | DATA HANDLING | ASCII, CODEPAGE, EBCDIC, TRANSLATE, TRANSLATION TABLE |
| USR8222N | Get Natural stack information | NAT | RUNTIME | STACK |
| USR8224N | Get Adabas file name | NAT | DATABASE | DATABASE, FILE, NAME |
| USR8225N | Maintain message ID and correlation ID of EntireX | RPC | RPC | CLIENT, CORRELATION ID, ENTIREX, MESSAGE ID, RPC, SERVER |
| USR8301N | Get Natural fix information | NAT | SYSTEM COMMANDS | ENVIRONMENT, FIX, SYSPROD |
| USR8302N | Define wait interval for current session | NAT | RUNTIME | WAIT |
| USR8401N | Read/Write dynamic error message parts | NAT | ERROR MESSAGES | *ERROR-NR, DYNAMIC, ERROR, SYSERR |
| USR9171N | Set user ID and password phrase for RPC server | RPC | RPC - SECURITY | PASSWORD, PASSWORD PHRASE, RPC, SECURITY, TICKET, USER ID |
| USR9175N | Ping, terminate or trace a Natural RPC server (pwd phrase) | RPC | RPC | PASSWORD PHRASE, PING, PWD PHRASE, RPC, SERVER, TERMINATE, TRACE, TRACEINFO |
| USR9176N | Terminate an EntireX Broker service (password phrase) | RPC | RPC | BROKER SERVICE, ENTIREX, PASSWORD PHRASE, RPC, SERVER, SHUTDOWN-SERVICE, TERMINATE |
| USR9177N | Shutdown server (seq. number) on EntireX Broker (pwd phrase) | RPC | RPC | BROKER SERVER, ENTIREX, PASSWORD PHRASE, RPC, SEQUENCE NUMBER, SERVER, SHUTDOWN, SHUTDOWN-SERVER, TERMINATE |
| USR9178N | Maintain local store clock value | NAT | DATE / TIME SUPPORT | *TIMESTMP, *TIMX, CONVERSION, COPYCODE-INTERFACE, DATE, LOCAL TIME, MICROSECONDS, SLIDING WINDOW, STORE CLOCK, TIME, TIME DIFFERENTIAL, TIMEZONE |
| USR9201N | Convert time-related variables | NAT | DATE / TIME SUPPORT | *DATX, *TIMESTMP, *TIMESTMPX, *TIMX, CONVERSION, COPYCODE-INTERFACE, DATE, DIFFERENCE, EXTENDED STORE CLOCK, MICROSECONDS, SLIDING WINDOW, SMART STORE CLOCK, STORE CLOCK, TIME |
| USR9205N | Create a hash value using SHA-256 or others | NAT | DATA HANDLING | HASH, METHOD, SECURITY, SHA-256 |
