Using Composite Grids

Configuring Composite Grids
Composite Grid sample
The Composite Grid object combines the capabilities of the Composite and Object Grid objects to provide a powerful and flexible means to display multiple DataView items.

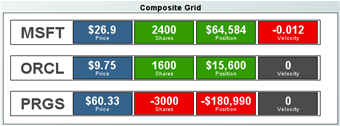

Illustration showing a Composite Grid
Above, a Composite Grid is used to display the instances of the tutorial DataView. The rtv file displayed in the grid contains a set of objects to display the details of a single instance of the tutorial DataView.
Illustration showing the details of a single instance
The objects are attached to the tutorial DataView filtering on $instanceId to select a single instance. The Composite Grid object is configured to pass each instance a unique value of $instanceId such that there is one row in the grid for each instance.
Note:
The Composite Grid object is really just an Object Grid with the Icon Class Name in its iconProperties set to obj_composite. The Composite Grid has all the behaviors of the Object Grid and Composite objects.
