This section describes the supplied programs, subprograms, and helproutines that help simplify and standardize the model creation process. These utilities can be invoked by the supplied models or by user-written models.
Note
The source code for external objects is not supplied.
This section covers the following topics:
All model subprograms use external parameter data areas (PDAs) stored in the SYSCST library. The source for the PDAs is provided and contains details about each parameter. For example, some of the listings for the CPAEL PDA are:
Parameter CPAEL Library SAG DBID 18 FNR 4
Command > +
I T L Name F Leng Index/Init/EM/Name/Comment
Top - -------------------------------- - ---- ---------------------------------
1 CPAEL
2 INPUTS
3 FILE-NAME A 32 /* File Name.
3 FIELD-NAME A 32 /* Field name to be found in the
3 #SIMPLE-OUTPUTS-ONLY L /* True if interested in
* /* #FIELD-FOUND only
* /* given file
2 INPUT-OUTPUTS
3 FILE-CODE P 8 /* If this code is known,
* /* NSC checks are avoided.
3 DDM-PREFIX A 16 /* Field prefix on DDM,
* /* this will be set if correct
* /* FILE-CODE is not provided.
2 SIMPLE-OUTPUTS
3 #FIELD-FOUND L /* True if field found on file
3 FIELD-IS-REDEFINED L /* The field is redefined.
----------------------------------------------------------------- S 70 L 1 |
CPAEL contains a level 1 structure called CPAEL. Depending on the type of parameter, the remaining parameters are grouped into the following structures: INPUTS, INPUT-OUTPUTS, and OUTPUTS. This layout is the same for all PDAs used by the supplied subprograms.
Note
Be careful when modifying fields in the INPUT-OUTPUTS structure;
these fields may retain information across multiple calls.
You can define the PDAs as local data areas (LDAs) within the model subprograms that invoke the utilities. CPAEL is the PDA corresponding to the CPUEL subprogram utility, which returns information about a field in Predict.
The following example shows a model subprogram that requires field information from Predict:
DEFINE DATA PARAMETER PARAMETER . . . LOCAL USING CPAEL LOCAL USING CSASTD . . . END-DEFINE . . . ASSIGN CPAEL.FILE-NAME = #PDAX-FILE-NAME ASSIGN CPAEL.FIELD-NAME = #PDAX-FIELD-NAME CALLNAT 'CPUEL' CPAEL CSASTD * *Check outputs of CPUEL . . . END
This section provides a brief description of the supplied program, subprogram, and helproutine utilities. For examples of how to invoke the utilities, refer to the source code for the supplied model subprograms in the SYSCST library (prefixed by CU).
Note:
Driver programs for many of the supplied model programs and
subprograms are included on the Natural Construct tape (prefixed by CTE). These
driver programs are also available through the Drivers menu option on the
Administration main menu. If a driver program is available, its location is
listed in the Drivers Menu Option section for the program or
subprogram. For information about invoking the driver programs, see
Drivers Menu
Function.
This section covers the following topics:
The supplied objects are divided into three categories, based on the type of information they access. Each category is identified by its prefix as follows:
| Prefix | Object Categories |
|---|---|
| CN* | Identifies objects that return or generate data based on information in the Natural system files. |
| CP* | Identifies objects that return or generate data based on information in Predict. |
| CS* | Identifies objects that are miscellaneous validation, calculation, or translation routines. Most of these routines do not access system file information, but some access Natural Construct system files. |
Whenever possible, use the supplied programs, subprograms, and helproutines instead of accessing the system file information directly. This helps protect your programs from unwanted changes to the internal structure. Natural Construct maintains the upward compatibility of the supplied programs, subprograms, and helproutines.
Many of the supplied subprograms return information through the CSASTD parameter data area (PDA). The value in the RETURN-CODE field should be checked after each call. If it is not blank, it should be passed back to the generation nucleus so the user is aware of the problem.
The following example shows a model subprogram that invokes the CPUEL utility:
DEFINE DATA PARAMETER USING CUMYPDA PARAMETER USING CU--PDA PARAMETER USING CSASTD LOCAL USING CPAEL . . . END-DEFINE . . . CALLNAT 'CPUEL' CPAEL CSASTD IF CSASTD.RETURN-CODE NE ' ' THEN ESCAPE ROUTINE IMMEDIATE END-IF
To invoke the supplied subprograms, pass only the level 1 structures in the PDA. This way, if new parameters are added to the utilities in future versions of Natural Construct, you need only recatalog your model subprograms to incorporate the changes.
Some subprograms have restricted data areas to retain information across multiple calls. The restricted data areas are identified by an R in the third position of the data area name (CPRELNX, for example).
You do not need to be concerned with the contents of these data areas. Define them as local data areas within the invoking subprograms and pass them to the subprogram that is invoked.
Tip
As with all PDAs, the name of the structure passed to the
subprogram always matches the name of the data area itself.
Many of the Natural Construct utility subprograms iterate through system data and, for each record found, call a user-supplied routine. For example, CPURLRD is used to retrieve all relationships related to a particular file. Rather than returning these relationships to the caller of CPURLRD, the caller must supply the name of a subprogram CPURLRD should call for each relationship found.
These routines accept an A1 array to allow the caller of the utility to communicate information to and from the subprogram called by the utility. This data area is represented by CSAPASS. It is accepted by the utility as a 1:v array so that the actual size of the data area can be determined by the requirements of the caller.
When a subprogram performs read logical processing and returns a series of records, it is sometimes difficult or inefficient for the subprogram to remember where it left off in a previous call. Also, this type of processing can be awkward to code in the invoking object because it must define looping logic and issue iterative CALLNATs until a certain end condition is reached.
To avoid these problems, some subprograms do not return the information to the calling object. Instead, the calling object passes the name of a subprogram that is invoked for each record encountered. To generate an INPUT statement containing all fields in a file, for example, you can use the CPUELNX and CPUELRD subprograms. This section describes these subprograms.

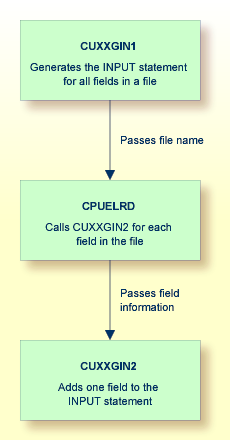

The CPUELNX subprogram can be called iteratively to continually return the next field in the file until an end-of-file condition is reached. The model subprogram that generates the INPUT statement must define the looping logic and make iterative CALLNATs to include each field in the INPUT statement.
The CPUELRD subprogram can be invoked once by the model subprogram (CUXXGIN1, for example). This subprogram receives the name of a file and a subprogram to CALLNAT (CUXXGIN2, for example). It traverses the file and CALLNATs the subprogram for each field. That subprogram adds the current field to the INPUT statement generated. For example:
To allow CPUELRD to remember information across iterative calls, a 1K area is passed to CUXXGIN2. This area can be redefined into individual fields, such as current status information, that are required by CUXXGIN2 across multiple calls. It can also pass additional information between CUXXGIN1 and CUXXGIN2.
Note
For an example of how subprogram chaining is used, refer to
the CUFMGIN1 and CUFMGIN2 programs in the SYSCST library.
The subprograms described in this section retrieve information from the Natural system files to assist in the generation process. For subprograms that return information about Natural objects (programs, data areas, etc.), the specified data area object must exist in the current library or one of its steplibs.
Tip
Driver programs for many of the supplied model programs and
subprograms are included on the Natural Construct tape (prefixed by CTE). These
driver programs are also available through the Drivers menu option on the
Administration main menu. If a driver program is available, its location is
listed in the Drivers Menu Option section for the program or
subprogram. For information about invoking the driver programs, see
Drivers Menu
Function.
This section describes the following subprograms:
| CNUEL | Description |
|---|---|
| What it does | Retrieves information about a field in a local data area (LDA) or parameter data area (PDA). This subprogram receives the name of a field and data area (CNAEL.INPUTS) and returns information about the field (CNAEL.OUTPUTS), such as the structure to which the field belongs, the field format and type, the level number, and the starting and ending index for arrays. |
| PDAs used |
|
| Files accessed |
|
CTEELN ***** Natural Related Subprograms ***** CTEELN1
Feb 25 - Driver for subprogram CNUEL - 03:30 PM
*Data Area Name : ________
Field Name.....: ________________________________
Structure Name : ________________________________
View Of Name...:
Field Found....: Field Format: Lvl Number....:
Constant Field : Field Length:
Field Redefined: Rank........:
Lvl Type Trail :
From Index Thru Index 1:V Field Occurrences
---------- ---------- --- -----------------
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUELNX | Description |
|---|---|
| What it does | Returns information about the next
field in a data area. This subprogram receives the name of an external data
area and returns information about the next field in that data area. On the
first call to this subprogram, the specified field is returned. On subsequent
calls, the next fields are returned.
CNRELNX (PDA containing reserved variables) keeps track of the current position of the data area and must not be modified by the calling program. Note |
| PDAs used |
|
| Files accessed |
|
On Linux platforms, it is necessary to explicitly close any open cursors. CNUELNX does this automatically whenever a data area is read in its entirety. However, if you want the calling program to only read a portion of the data area, you must insert additional code to close the open cursor. For example:
/* close the object IF CNRELNX.NATA1500-END-OF-FILE IGNORE ELSE CNAELNX.#CLOSE-OBJECT := TRUE CALLNAT 'CNUELNX' CNAELNX CNRELNX CSASTD END-IF
CTENLNX ***** Natural Related subprograms ***** CTENLNX1
Feb 25 - Driver for subprogram CNUELNX - 03:15 PM
*Data Area Name...: ________ Field Count: Constant Field :
First Time.......: X End Of File: Dynamic Field..:
Structure Name...: Field Redefined:
Field Name.......: Field Format...:
Field Length.....: Units: Decimals.......:
View Of Name.....:
Level Number.....: Basic Occurrences: _ Rank...........:
Level Type Trail.:
Occurrences Found:
Starting At: 1_
From Index Thru index 1:V Field Occur
Object location ------------ ------------ --- -----------
Library: ________
DBID...: _____
FNR....: _____
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
Tip
As this subprogram can have up to 99 field levels, enter a
level number in the Starting At field to display the specified level (as well
as the next nine levels).
| CNUERMSG | Description |
|---|---|
| What it does | Receives a
Natural error message number and returns the error
message text. This subprogram receives a Natural error message number
(CSASTD.MSG-NR) and returns the corresponding error message text (CSASTD.MSG).
For example, the message text for Natural message number 0888 is
Storage Overflow During Compilation or
Execution.
|
| PDAs used |
|
| Files accessed |
|
Note
This subprogram returns system error messages, rather than
application error messages. For information about application error messages,
see CNUMSG
Utility.
CTEERMSG N a t u r a l C o n s t r u c t CTERMSG1
Aug 14 Driver for subprogram CNUERMSG 1 of 1
Msg Nr...: ____ Error Fld:
Ret Code :
Msg:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUEXIST | Description |
|---|---|
| What it does | Checks for the existence of a
Natural module. This subprogram receives the name of
a Natural module and determines whether its source, compiled object, or both
exist. If the source and/or compiled object exist, the subprogram returns the
module type (P for program) and library name(s) in which the source and/or
compiled object(s) were found.
If the module is not found in the current library, you can request a search of all steplibs. In this case, the name of the first library in which the module was found is returned. |
| PDAs used |
|
| Files accessed |
|
CTEEXIST ***** Natural Related Subprograms ***** CTEXIST
Feb 09 - Driver for subprogram CNUEXIST - 05:31 PM
*Object/Source Name......: ________ Source Object
Object/Source or Both...: _ -------- --------
Search type... Exists.:
Library + Steplib Search: _ Type...:
or Library:
Specific library search DBID...:
Library Name........: ________ FNR....:
DBID................: _____ User...:
FNR.................: _____ Date...:
(Blank implies current library) Time...: |
| CNUGDABL | Description |
|---|---|
| What it does | Builds a full path name for a global
data area (GDA) block. This subprogram receives a GDA name and the name of a
GDA block. It returns the full path name from the master block to the specified
block. For example, if BLOCK11 is a sub-block of BLOCK1, which is a sub-block
of MASTER-BLOCK, the following full path name is returned:
MASTER-BLOCK.BLOCK1.BLOCK11 |
| PDAs used |
|
| Files accessed |
|
CTEGDABL N a t u r a l C o n s t r u c t CTEGDAB1
Aug 14 Driver for subprogram CNUGDABL 1 of 1
*GDA Name......: ________
Block Name....: ________________________________
Full Path Name:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUGDAEL | Description |
|---|---|
| What it does | Verifies that a field is contained in a global data area (GDA). This subprogram receives the name of a GDA and the name of a field. If the field exists in the GDA, this subprogram returns a confirmation flag. |
| PDAs used |
|
| Files accessed |
|
CTEGDAEL N a t u r a l C o n s t r u c t CTEGDAE1
Aug 14 Driver for subprogram CNUGDAEL 1 of 1
*GDA Name...: ________
Field Name : ________________________________
Field Found:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUGENDA | Description |
|---|---|
| What it does | Adds a field to a data area. This
subprogram receives the definition of a field (field type, level number, field
name, field format and length, and the number of occurrences, for example) to
be added to a data area and generates the field definition at the end of the
current edit buffer.
For information about INPUT/OUTPUT parameters, refer to the CNAGENDA data area in the SYSCST library. Note |
| PDAs used |
|
| Files accessed |
|
To use this utility internally, issue a CALLNAT to the following subprogram immediately after calling CNUGENDA:
CALLNAT 'CNUGENDU'
There are no parameters for this subprogram.
CTEGENDA ***** Natural Related Subprograms ***** CTEGEND1
Feb 25 - Driver for subprogram CNUGENDA - 03:19 PM
Field Name: ________________________________
Field Type: _ Format: _ FIELD-LENGTH-A FIELD-LENGTH-A 00000000000
Level.....: _ Length: ____________ Occurrences: _______________
Comment....: ________________________________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUMPPRF | Description |
|---|---|
| What it does | Reads a map profile from a
Natural system file. This subprogram receives the
name of the map profile in the CSAMPSET.#PROFILE field. It reads the profile
from the Natural system file (FNAT) and returns the map settings.
For information about the OUTPUT parameters, refer to the CSAMPSET data area in the SYSCST library. |
| PDAs used |
|
| Files accessed |
|
Note
This routine is not available on all
platforms.
CTEMPPRF N a t u r a l C o n s t r u c t CTEMPRF1
Aug 14 Driver for subprogram CNUMPPRF 1 of 1
Map Profile....: ________ Layout......: Map Type.....:
Map Version....: Map Name....: Std Keys....:
+--------------------------------------------+
1__ | Delimiter Class AD CD Delimiter Char |
DC: | --------------- -- -- -------------- | Col Shift....:
PS: | | Case Deflt...:
LS: | | Cursor Skip..:
ZP: | | PM...........:
+--------------------------------------------+
Write Statement: CV..........: Justification:
Input Statement: Error Code..: Enforce Attr :
Auto Rule Rank : Hlp Fld Dflt:
Fill Character : Help........:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit bkwrd frwrd mai |
| CNUMSG | Description |
|---|---|
| What it does | Returns application message text from
the SYSERR message file.
Note |
| PDAs used |
|
| Files accessed |
|
CTEMSG ***** Natural Related subprograms ***** CTEMSG1
Oct 16 - Driver for subprogram CNUMSG - 08:53 AM
Message Number.: 0008 *Message Library: CSTMSG__
Message Text (Input)
______________________________________________________________________
Retrieval Method: R ('R' for Retrieve, 'S' for Substitute, 'B' for Both)
Message Substitution
Data(1): ________________________________ *Message Library: CSTLDA__
Data(2): ________________________________ *Message Library: CSTLDA__
Data(3): ________________________________ *Message Library: CSTLDA__
Default Languages
*LANGUAGE: 1 1) 1_ 2) 1_ 3) 1_ 4) 1_ 5) 1_ 6) 1_ 7) 1_ 8) 1_
Response Code: 0 ( 9 - unsuccessful )
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUNPDA | Description | |
|---|---|---|
| What it does | Determines what the parameters are in a given subprogram and then passes the parameters to another subprogram to process. | |
| Parameters/PDAs used |
If you are not using method 0, these are the only parameters used. If you are using method 0 and creating your own subprogram to process individual fields, your new subprogram requires the following parameter data areas:
|
CTENPDA ***** Natural Related Subprograms ***** CTENPDA1
Aug 15 - Driver for subprogram CNUNPDA - 11:35 AM
Inputs
subprogram name ....... ________ * callnat ............... CTENPDA2
method ................ ___ * Include step Library .. _
Detail ext. data Areas 2__ * level 1 fields only ... _
Include Redefine Base . ___ * Include Redefines ..... 2__
Basic occurrences ..... _ Only process 1:V fields _
Specific 1:V override . ____ ____ ____ ____ ____ ____ ____ ____ ____ ____
____ ____ ____ ____ ____ ____ ____ ____ ____ ____
____ ____ ____ ____ ____ ____ ____ ____ ____ ____
default 1:V ........... _____
Skip data areas ....... ________ ________ ________ ________ ________
________ ________ ________ ________ ________
________ ________ ________ ________ ________
________ ________ ________ ________ ________
________ ________ ________ ________ ________
Outputs
Library ............... ________
number of parms ....... _____ 1:V parms found ....... _
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF12---
help retrn quit main |
Note
In addition to these fields, CNUNPDA also has access to the
PDA-NAME input parameter in CNANPDA. When PDA-NAME contains the name of an
external data area, the parameters in PDA-NAME are processed and the parameters
in SUBPROGRAM-NAME are ignored.
When using the CTENPDA driver program to call CNUNPDA, the program:
Receives the name of a Natural subprogram in the Subprogram name field.
Reads the parameters for the subprogram.
Determines which fields are available in the PDA (either internally or externally defined).
Passes each field to the processing subprogram specified in the Callnat field. When method 0 is used, each PDA in the subprogram is processed by the subprogram specified in the Callnat field.
Note
When the method is 0 for CTENPDA, whatever is in the
Callnat field is executed. By default this is the CTENPDA2 subprogram.
Regardless of which subprogram is specified in the Callnat field, the
subprogram is executed once for each of the parameters found in that
subprogram. CTENPDA2 uses a map to display the attributes for each parameter in
the specified subprogram.
CTENPDA returns the name of the library containing the Natural subprogram, the number of fields in the PDA, and the number of 1:V fields. The map for CTENPDA uses the variables in CNANPDA (which include the input of the subprogram name and the output of the number of parameters processed). The available methods are:
0 - Normal call
1 - Check Existence of 1:V Array
2 - Generate As Local
3 - Generate As Arguments
4 - Generate As Input Fields
5 - Generate As Helproutine Parms
6 - Generate As Parameter
7 - Generate As External Parameter
8 - Generate As Parameter String
9 - Generate As Non Specified
10 - Generate As Restricted Input
11 - Generate As Unicode Parameter String
For common processes, such as generating an LDA based on the PDAs of a specified subprogram, a non-0 method can be used. This means the value in the Callnat field is ignored and a Construct internal subprogram is called instead of CTENPDA2.
The generated PDA information can be useful when generating:
A CALLNAT statement for the specified subprogram, since a CALLNAT statement requires all level 1 fields in the PDA to be passed to the subprogram (method 3).
An INPUT statement to test the specified subprogram. In this case, all the fields required for the subprogram can be easily defined in the INPUT statement (method 4).
Fields for a DEFINE DATA statement. This is helpful when creating a module that will issue a CALLNAT to the subprogram that is being processed (method 2 or method 6).
How the CST internal subprogram uses the extracted PDA information is determined by the specified method and other input values (such as, only process 1:V fields).
Using the internal subprogram is similar to using method 0 with a CALLNAT to CTNEPDA2, except the method is different and the name of the subprogram called to process each PDA field is not required. The key difference is that information is written to the editor, instead of displayed on the screen (as with CTENPDA2). When not using method 0, therefore, you must quit out of CTENPDA to see the processing results.
Once you know what you want to generate, you can use parameters shown on the CTENPDA screen by placing them in the PDA for CNUNPDA (CNANPDA) and invoking the following CALLNAT statement:
CNANPDA.METHOD := CNLNPDA.GENERATE-AS-LOCAL
CNANPDA.INCLUDE-STEPLIB-SEARCH := TRUE
CNANPDA.INCLUDE-REDEFINE-BASE := CNLNPDA.INCLUDE-BASE-AND-REDEF-LEVEL
CNANPDA.INCLUDE-REDEFINES := CNLNPDA.INCLUDE-ALL-REDEFINES
CALLNAT 'CNUNPDA' CNANPDA
CUDRPDA (or CU__PDA, or any other model PDA)
#PASS(*)
CSASTD |
This section provides an example of using the Driver for subprogram CNUNPDA program, CTENPDA. CTENPDA is useful when determining the effect of the input parameters on the output parameters. For example, you can enter "CALC" in Subprogram name, "CTENPDA2" in Callnat, "2" in Detail ext. data Areas, and "2" in Include redefines to determine the output in the CNANPDA2 PDA (which is placed on a map in CTENPDA2). These details help identify valuable attributes about fields in the data area, such as:
Level number (which allows you to reject all fields that are not level 1, for example).
Field name
Field format
Field length
For this example, the supplied CALC subprogram (available in the SYSCSTDE library) is used. The PDA for CALC is:
DEFINE DATA PARAMETER 1 INPUT-DATA 2 #FUNCTION (A30) 2 #FIRST-NUM (N5.2) 2 #SECOND-NUM (N5.2) 2 #SUCCESS-CRITERIA (N5) 1 OUTPUT-DATA 2 #RESULT (N11.2) 2 #TIME (T) 2 #SUCCESS (L) END-DEFINE
In the following example, CALC is used as input to the subprogram name field:
CTENPDA ***** Natural Related Subprograms ** CTENPDA1
Sep 12 - Driver for subprogram CNUNPDA - 05:14 PM
Inputs
subprogram name ....... CALC____ * callnat ............... CTENPDA2
method ................ ___ * Include step Library .. _
Detail ext. data Areas 2__ * level 1 fields only ... _
Include Redefine Base . ___ * Include Redefines ..... 2__
Basic occurrences ..... _ Only process 1:V fields _
Specific 1:V override . ____ ____ ____ ____ ____ ____ ____ ____ ____ ____
____ ____ ____ ____ ____ ____ ____ ____ ____ ____
____ ____ ____ ____ ____ ____ ____ ____ ____ ____
default 1:V ........... _____
Skip data areas ....... ________ ________ ________ ________ ________
________ ________ ________ ________ ________
________ ________ ________ ________ ________
________ ________ ________ ________ ________
________ ________ ________ ________ ________
Outputs
Library ............... ________
number of parms ....... _____ 1:V parms found ....... _
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF12---
help retrn quit main |
Press Enter to display details about the first level 1 field in the data area for CALC:
Return to caller ........
Current line number ..... 2 Current Attribute number 1
External data area ......
Structure name ..........
Field name .............. INPUT-DATA
Redef start ............. Field redefined .........
Level number ............ 1 Field format ............
Rank .................... Field length ............
Found-1-V ............... Dynamic .................
From index ..............
Thru index ..............
Field occurrences .......
Start Occurences at ..... 1
Occurrences.......
Level type trail . S
From (1)
From (2)
From (3)
To (1)
To (2) |
This screen displays details about the INPUT-DATA field and is for display only (i.e., you cannot change the values on the screen). Press Enter again to display the first level 2 field in INPUT-DATA:
Return to caller ........
Current line number ..... 3 Current Attribute number 2
External data area ......
Structure name .......... INPUT-DATA
Field name .............. #FUNCTION
Redef start ............. Field redefined .........
Level number ............ 2 Field format ............ A
Rank .................... Field length ............ 30.0
Found-1-V ............... Dynamic .................
From index ..............
Thru index ..............
Field occurrences .......
Start Occurences at ..... 1
Occurrences.......
Level type trail . S F
From (1)
From (2)
From (3)
To (1)
To (2) |
This screen displays details about the #FUNCTION field. Continue pressing Enter to display every level 1 and under field in the data area. After the last field is displayed, the input screen is redisplayed.
Notes:
The parameters for CTENPDA2 are:
PARAMETER USING CNANPDA PARAMETER USING CNANPDA2 PARAMETER 01 DATA-PTR(A1/1:V) PARAMETER USING CU__PDA PARAMETER USING CSASTD |
The important inputs when using method 0 are in CNUNPDA. These are:
CNANPDA.SUBPROGRAM-NAME /* the name of the subprogram from which the parameters will be retrieved
CNUNPDA.CALLNAT /* the new subprogram mentioned above
CNUNPDA.METHOD /* should be left as 0
If the non-zero methods do not provide what you need, you can create your own version of CTENPDA2 and do whatever you want with the available variables (the same PDA variables used in CTENPDA2). For example, if you add INCLUDE CU--DFPR to your program, you can use SRC (the editor) as a printer output destination:
INCLUDE CU--DFPR WRITE (SRC) 'Hello' /* this writes Hello to the editor END |
For an example of using the CNUNPDA subprogram, refer to CUDRGEN2 in the SYSCST library.
Note:
To see how CUDRGEN2 works, run the Natural Debugger and place
a break in CUDRGEN2. Then use the Driver model to generate a program.
| CNUPEXST | Description |
|---|---|
| What it does | Checks for the existence of a map profile. This subprogram receives the name of a map profile and verifies that it exists in the Natural FNAT system file. |
| PDAs used |
|
| Files accessed |
|
Note
This subprogram is not available on all
platforms.
CTEPEXST N a t u r a l C o n s t r u c t CTEPXST1
Aug 14 Driver for subprogram CNUPEXST 1 of 1
Map Profile Name..: ________
Map Profile Exists:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUSEL | Description |
|---|---|
| What it does | Selects fields from data areas (local or parameter). This subprogram receives the name of a local (LDA) or parameter data area (PDA) and browses fields in the data area. To select a field, mark it. If more than one field is marked, only the first field is selected. You can enter "X" to terminate the display or "T" to position the list to the top. |
| PDAs used |
|
| Files accessed |
|
CTESEL ***** Construct Related Subprograms ***** CTESEL1
Oct 09 - Driver for subprogram CNUSEL - 01:52 PM
*Data Area Name..: ________ Fld Name:
Field Occurrences
Structure Number: Field Format: -----------------
Type Of Field...: Field Length:
Level Number....: Units.......:
Total Fields Cnt: 0 Decimals....:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUSRCNX | Description |
|---|---|
| What it does | Receives the name of the Natural object and returns the next source line. The first call to the subprogram returns the first source line. Subsequent calls return the next lines. |
| PDAs used |
Note |
| Files accessed |
|
CTESRCNX N a t u r a l C o n s t r u c t CTESRCN1
Aug 14 Driver for subprogram CNUSRCNX 1 of 1
*Object Name: CTELRDSM Version:
First Time : X Include Comments: _
Src Line...: Userid: Date...: - - Type:
End Of Src : Level : Time...: . . . SM..:
Src Code...:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CNUSRCRD | Description |
|---|---|
| What it does | Reads source text and performs
specified processing. This subprogram receives the name of a Natural object (in
the CNASRCRD.#OBJECT-NAME field) and the name of the subprogram invoked to
process each source line (in the CNASRCRD.#CALLNAT field). It passes the fields
it receives to the subprogram it invokes.
CU--PDA, which contains the model parameters, is also passed to CNUSRCRD, as well as CSAPASS (redefined as required). It remembers information between calls to the subprogram that processes each source line. |
| PDAs used |
|
| Files accessed |
|
CTESRCRD N a t u r a l C o n s t r u c t CTESRCR1
Aug 14 Driver for subprogram CNUSRCRD 1 of 1
*Object Name: ________ Finished:
CALLNAT.....: CTESRCSM Include Comments: _
Object Information
------------------
Type.......: Version: Userid: Time: . . .
SM.........: Level..: Date: - -
Src Line...:
Source Code:
:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
Note
If you change the name of the subprogram in the CALLNAT
field, the specified subprogram must have the same parameters as those in the
PDAs used by CNUSRCRD.
You can attach the helproutines in this section to fields that require the input of Natural information (such as object names, message numbers, etc.). They are active helproutines that populate the field to which they are attached.
| CNHMDL | Description |
|---|---|
| What it does | Browses all the Natural
Construct models for selection. Valid restriction parameters are:
|
| Attached to | Input of a Natural Construct model name. |
| Parameters used |
|
| Files accessed |
|
| CNHMSG | Description |
|---|---|
| What it does | Browses for and displays the application error message text. You can add new messages to the application by pressing the Add PF-key (the new message number is always adjusted to the next available number). |
| Attached to | Input of a message number field. |
| Parameters used |
|
| Files accessed |
|
| CNHOBJ | Description |
|---|---|
| What it does | Browses all objects of a specified type
in the current library. This helproutine receives an object type and browses
all the objects with that type that exist in the current library. Valid object
types are:
|
| Attached to | Input of a Natural object name field. |
| Parameters used |
|
| Files accessed |
|
The subprograms in this section perform specialized functions to assist in the generation process.
Note
Driver programs for many of the supplied programs/subprograms are
available through the Drivers menu option on the Administration main menu. If a
driver program is available, its location is listed in the Drivers
Menu Option section in the program/subprogram description. For more
information about the supplied driver programs, see
Drivers Menu
Function.
These subprograms are:
| CSU-VAR | Description |
|---|---|
| What it does | Validates a specified variable name.
This subprogram receives a string and checks for a valid Natural naming
convention. Use it whenever a name used as a Natural variable is entered. If
the name is invalid, the subprogram returns a message containing the reason.
Note |
| Parameters used |
|
| Files accessed |
|
CTE-VAR ***** Construct Related Subprograms ***** CTE-VAR1
Oct 09 - Driver for subprogram CSU-VAR - 02:58 PM
String: _________________________________________________________________
Msg...:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUBANN | Description |
|---|---|
| What it does | Generates the standard banner into the source buffer. Use this subprogram to generate Natural comments. |
| PDAs used |
|
| Files accessed |
|
| CSUBLDRP | Description |
|---|---|
| What it does | Builds a report layout. This subprogram
builds a report layout for the Batch, Browse, and Browse-Select models. It can
be invoked from a sample subprogram within a user exit. The invoking subprogram
must issue an initial RESET statement to clear the structures in CSASELFV. For
example:
RESET CSASELFV CSASELFV.GENERAL-INFORMATION CSASELFV.FIELD-SPECIFICATION(*) The sample subprogram must also contain a SET KEY ALL statement. For an example of how to invoke the CSUBLDRP utility, refer to the CUSCSRP subprogram in the SYSCST library. |
| PDAs used |
|
| Files accessed |
|
| CSUBMIT | Description |
|---|---|
| What it does | Submits a job for execution. The JCL
for the job must be in the source buffer.
Note |
| PDAs used |
|
| Files accessed |
|
| CSUBYTES | Description |
|---|---|
| What it does | Calculates the required bytes for a field, based on the field's Natural format and length. This subprogram receives the length and format of a field and returns the number of bytes occupied by the field. |
| PDAs used |
|
| Files accessed |
|
CTEBYTES ***** Construct Related Subprograms ***** CTEBYTE1
Feb 25 - Driver for subprogram CSUBYTES - 03:49 PM
Field Format: _ Bytes.......:
Field Length: ____________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUCASE | Description |
|---|---|
| What it does | Converts a string to upper/lower/mixed
case. This subprogram receives a string and a desired function. It converts and
returns the string as follows:
|
| PDAs used |
|
| Files accessed |
|

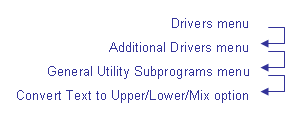

CTECASE N a t u r a l C o n s t r u c t CTECASE1
Aug 14 Driver for subprogram CSUCASE 1 of 1
Function: _ U=Upper, L=Lower, M=Mixed Case
String..: _________________________________________________________________
___________________________________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUCCMD | Description |
|---|---|
| What it does | Generates command block delimiters into
the Natural source buffer for super models (generate multiple modules). This
subprogram receives a command type, an eight-character module name, a module
type, and, optionally, a model name.
Natural Construct evaluates the contents of these command blocks after it processes the pre-generation subprogram for the super model. Before continuing the generation, Natural Construct either creates the child model specification or saves, stows, and catalogs the contents of the command block. CSUCCMD must always be called twice — first to initialize the command block and then to close it after generating the contents of the command block. Notes:
|
| PDAs used |
|
| Files accessed |
|
| CSUCENTR | Description |
|---|---|
| What it does | Centers a text string. This subprogram
centers text, such as headings, within a variable. The length passed to this
subprogram should be one of the following:
|
| PDAs used |
|
| Files accessed |
|
CTECENTR N a t u r a l C o n s t r u c t CTECNTR1
Aug 14 Driver for subprogram CSUCENTR 1 of 1
Length: ___
String: _________________________________________________________________
___________________________________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUCOMPR | Description |
|---|---|
| What it does | Generates an IF clause for two
structures. The subprogram receives two structure names and a list of
underlying components to compare. It generates the IF clause according to the
criteria requested (LT, LE, GT, GE).
Note |
| PDAs used |
|
| Files accessed |
|

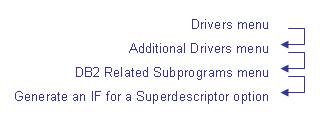

CTECOMPR N a t u r a l C o n s t r u c t CTECOMP1
Aug 14 Driver for subprogram CSUCOMPR 1 of 1
Comparison Operator.: __ Lhs Structure: ________________________________
Tab.................: ___ Rhs Structure: ________________________________
No. Of Components...: ___
Component Fld Name
+----------------------------------+
1__ | ________________________________ |
| ________________________________ |
| ________________________________ |
| ________________________________ |
| ________________________________ |
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit bkwrd frwrd mai |
| CSUCTRL | Description |
|---|---|
| What it does | Retrieves information from the Natural Construct control record and sets the PF-keys, help indicator, underscore characters, position indicators, disable indicator, scroll indicator, "of" right prompt, and dynamic attributes for Natural Construct. |
| PDAs used |
|
| Files accessed |
|
| CSUCURS | Description |
|---|---|
| What it does | Determines the position of the field in which the cursor is placed. This subprogram is invoked when runtime translation is requested. It determines the message numbers and positions associated with fields in a translation LDA and invokes the CSUTLATE subprogram to perform runtime translation. For more information, see CSUTLATE Subprogram. |
| Parameters/PDAs used |
|
| Files accessed |
|
| CSUCURS1 | Description |
|---|---|
| What it does | Determines the position of a single field in which the cursor is placed. This subprogram is invoked whenever runtime translation of a single field is requested. It determines the message number and position associated with the field and invokes the CSUTLATE subprogram to perform runtime translation. For more information, see CSUTLATE Subprogram. |
| Parameters/PDAs used |
|
| Files accessed |
|
| CSUDB2SP | Description |
|---|---|
| What it does | Generates a FIND statement for a
superdescriptor. This statement retrieves DB2 records based on a complex key
definition. If a complex key is composed of 5 fields (Field1, Field2, Field3,
Field4, and Field5), for example, the generated FIND/WHERE clause is:
Field1 GE #INPUT.Field1
SORTED BY Field1
Field2
Field3
Field4
Field5
WHERE Field2 GE #INPUT.Field2
AND Field3 GE #INPUT.Field3
AND Field4 GE #INPUT.Field4
AND Field5 GE #INPUT.Field5
OR Field1 GE #INPUT.Field1
AND Field2 GE #INPUT.Field2
AND Field3 GE #INPUT.Field3
AND Field4 GT #INPUT.Field4
OR Field1 GE #INPUT.Field1
AND Field2 GE #INPUT.Field2
AND Field3 GT #INPUT.Field3
OR Field1 GE #INPUT.Field1
AND Field2 GT #INPUT.Field2
OR Field1 GT #INPUT.Field1
Note: |
| PDAs used |
|
| Files accessed |
|

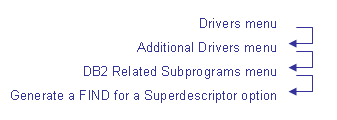

CTEDB2SP N a t u r a l C o n s t r u c t CTEDB2S1
Aug 14 Driver for subprogram CSUDB2SP 1 of 1
*File Name.........: ________________________________ Find Next Record: _
*Field Name........: ________________________________
Function..........: ________________________________
LHS Structure.....: ________________________________
LHS Index.........: _______________
RHS Structure.....: ________________________________
RHS Index.........: ________________________________
Prefix Length.....: ___
Low Key Structure : ________________________________
High Key Structure: ________________________________
Tab...............:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUDELFF | Description |
|---|---|
| What it does | Deletes the lines containing */ in the edit buffer. This subprogram searches for and deletes the lines containing */ in the edit buffer. These lines are written by WRITE/PRINT statements when the DEFINE PRINTER OUTPUT 'SOURCE' statement is used. |
| PDAs used |
|
| Files accessed |
|
CTEDELFF N a t u r a l C o n s t r u c t CTEMAP1
Aug 14 Driver for subprogram CSUDELFF 1 of 1
+------------------------------------+
| |
| PRESS ENTER TO EXECUTE. |
| |
+------------------------------------+
Read in New Source: _
*New Source Name...: ________
New Source Library: DEVEX___
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUDEFLT | Description |
|---|---|
| What it does | Provides default specification values for Natural Construct models. This subprogram provides an interface between generated applications and the user-maintained CSXDEFLT sample exit subprogram. To override the default settings, modify CSXDEFLT. The CCDEFLTA, CCDEFLTL, and CCDEFLTN copycode members return defaults for alphanumeric, logical, and numeric values, respectively. |
| PDAs used |
|
| Files accessed |
|
| CSUDYNAT | Description |
|---|---|
| What it does | Builds parameters containing dynamic
attributes. This subprogram receives a set of dynamic attribute characters in
the CSADYNA.#ATTRIBUTE-CHARS(A11/1:13) field and builds the definition for the
DY= parameter. The positioning within this array indicates the type of dynamic
attribute assigned. The positions and attributes are:
For example, if you enter: #ATTRIBUTE-CHARS(1) = '}'
#ATTRIBUTE-CHARS(2) = '{'
This subprogram returns: #DY-PARAMETER = DY={I
If the caller's attributes are printable special characters, they are represented literally. Otherwise, they are represented using the HH syntax. Notes:
|
| PDAs used |
|
| Files accessed |
|
CTEDYNAT N a t u r a l C o n s t r u c t CTEDYNT1
Aug 14 Driver for subprogram CSUDYNAT 1 of 1
Attribute Characters
--------------------
(1) Normal Intensity..: _ (8) Green.............: _
(2) Intensified.......: _ (9) Neutral (white)...: _
(3) Blinking..........: _ (10) Pink..............: _
(4) Cursive/Italic....: _ (11) Red...............: _
(5) Underlined........: _ (12) Turquoise.........: _
(6) Reversed Video....: _ (13) Yellow............: _
(7) Blue..............: _
Dynamic Attribute Parameter:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUEMLEN | Description |
|---|---|
| What it does | Determines the number of characters (bytes) required to display an edit mask. This subprogram receives the name of an edit mask and the format of the field to which the edit mask is applied. It returns the number of characters (bytes) required to display the edit mask. |
| PDAs used |
|
| Files accessed |
|

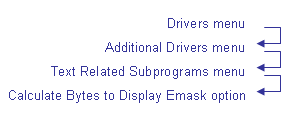

CTEEMLEN N a t u r a l C o n s t r u c t CTEMLEN1
Aug 14 Driver for subprogram CSUEMLEN 1 of 1
Edit Mask.....: ______________________________________________________
Field Format..: __
Display Length:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUENDX | Description |
|---|---|
| What it does | Generates the end of a user exit
prompt. This subprogram is used by sample subprograms that generate multiple
user exits. Call this subprogram after each user exit is generated.
Note |
| PDAs used |
|
| Files accessed |
|
CTEENDX N a t u r a l C o n s t r u c t CTEMAP1
Aug 14 Driver for subprogram CSUENDX 1 of 1
+------------------------------------+
| |
| PRESS ENTER TO EXECUTE. |
| |
+------------------------------------+
Read in New Source: _
*New Source Name...: ________
New Source Library: DEVEX___
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUFDEF | Description |
|---|---|
| What it does | Validates a field definition. This
subprogram receives the Natural format and length of a field and a list of
invalid field formats to disallow. To disallow control variables as input
variables, for example, list the invalid formats in the CSAFDEF.#INVALID
FORMATS field. If the field definition is valid, nothing is returned in
CSUFDEF.
If the field definition is invalid, CSASTD.MSG and CSASTD.ERROR-FIELD contain an error message and the invalid component of the field (FIELD-FORMAT, DECIMALS, or UNIT). |
| PDAs used |
|
| Files accessed |
|
CTEFDEF N a t u r a l C o n s t r u c t CTEFDEF1
Aug 14 Driver for subprogram CSUFDEF 1 of 1
Field Format...: _ Invalid Formats: __________
Field Length...: _____
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUFRVAR | Description |
|---|---|
| What it does | Returns the parameters and conditions from the model code frames. This subprogram receives a model name and traverses its code frames. It returns the code frame parameters and conditions. |
| PDAs used |
|
| Files accessed |
|
CTEFRVAR N a t u r a l C o n s t r u c t CTEFRVR1
Aug 14 Driver for subprogram CSUFRVAR 1 of 1
*Model Name: ________________________________
No. Of Conditions : 0
No. Of Frame Parms: 0
+---------------------------------------+--------------------------------+
| 1__ Conditions | 1__ Frame Parameters |
| -------------------------------- | -------------------------- |
| | |
| | |
| | |
| | |
| | |
+---------------------------------------+--------------------------------+
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit bkwrd frwrd mai |
| CSUGEN | Description |
|---|---|
| What it does | Issues a CALLNAT to the
Natural Construct Generate function for a specified
module. This subprogram receives the names of a model PDA and a model
information PDA (CSAMODEL, which must contain the name of the model) and uses
the inputs to generate the module code into the Natural source buffer. When the
CALLNAT is made to the module, the code is appended to the contents of the
source buffer. The source buffer name or type does not change.
Notes:
|
| PDAs used |
|
| Files accessed |
|
| CSUHEADS | Description |
|---|---|
| What it does | Separates a line of headings into separate headings. This subprogram receives a line of headings and returns three separate headings (each with the length of longest heading). |
| PDAs used |
|
| Files accessed |
|
CTEHEADS N a t u r a l C o n s t r u c t CTEHEAD1
Aug 14 Driver for subprogram CSUHEADS 1 of 1
Headings: ______________________________ Field Headings Stacked
----------------------
Field Heading Width: 0
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUINCL | Description |
|---|---|
| What it does | Inserts the source for all copycode (currently in the edit buffer) into the edit buffer. |
| PDAs used |
|
| Files accessed |
|

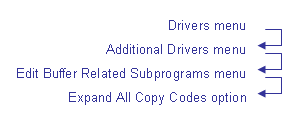

CTEINCL N a t u r a l C o n s t r u c t CTEMAP1
Aug 14 Driver for program CSUINCL 1 of 1
+------------------------------------+
| |
| PRESS ENTER TO EXECUTE. |
| |
+------------------------------------+
Read in New Source: _
*New Source Name...: ________
New Source Library: DEVEX___
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUIS | Description |
|---|---|
| What it does | Verifies whether the contents of an
alphanumeric field can be converted to a specified format and length. If the
format and length are invalid Natural formats,
CSASTD.MSG contains an error message when this subprogram is invoked. If the
format and length are valid, CSASTD.MSG is blank.
In some cases, a user must specify a value using a certain (variable) format and length. For example, the minimum/maximum key values should be valid values corresponding to the format and length of the key. You cannot use the Natural IS function because the format is not known until runtime. |
| PDAs used |
|
| Files accessed |
|
CTEIS N a t u r a l C o n s t r u c t CTEIS1
Aug 14 Driver for subprogram CSUIS 1 of 1
Field Value.: __________________________________________________
Field Format: _
Field Length: ___
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSULABEL | Description |
|---|---|
| What it does | Verifies a Natural looping label. This
subprogram receives a string of characters and validates it against the Natural
label naming convention. ; if the label is not valid, CSASTD.MSG contains an
error message.
|
| Parameters/PDAs used |
|
| Files accessed |
|
CTELABEL N a t u r a l C o n s t r u c t CTELABL1
Aug 14 Driver for subprogram CSULABEL 1 of 1
Label: ________________________________
Msg..: __________________________________________________________________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSULENGT | Description |
|---|---|
| What it does | Builds an input prompt and calculates the length of the heading. This subprogram receives a field name, format, and length. It builds the input prompt from the field headings (if no heading was given, the field name is converted to mixed case) and calculates the length from the format, length, and edit mask. It also returns the heading length and sign option (based on the field format and edit mask). |
| PDAs used |
|
| Files accessed |
|
CTELENGT N a t u r a l C o n s t r u c t CTELNGT1
Aug 14 Driver for subprogram CSULENGT 1 of 1
Field Name....: ________________________________ Field Length....: ______
Field Headings: ______________________________ Field Format....: _
: ______________________________ Sign............: _
: ______________________________
Edit Mask.....: ______________________________________________________
Input Prompt..: Heading Length..:
Sg Option.....: Fld Displ Length:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSULPS | Description |
|---|---|
| What it does | Changes the display language (*Language value) and sets the translation required flag to True. This subprogram displays a list of all available languages supported by Natural. When a new language is selected, it switches the user's session to that language and sets the translation required flag to True. |
| Parameter/PDAs used |
|
| Files accessed |
|
| CSUMAX | Description |
|---|---|
| What it does | Generates the assignment of a maximum value for a field. This subprogram receives the name, format, and length of a variable and generates the assignment of the maximum value for the field into the edit buffer. It is used when reading a file for all values with a specified prefix, where the suffix extends from the lowest to the highest value. |
| PDAs used |
|
| Files accessed |
|

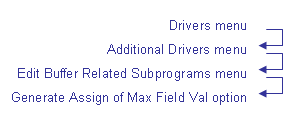

CTEMAX N a t u r a l C o n s t r u c t CTEMAX1
Aug 14 Driver for subprogram CSUMAX 1 of 1
Field : _________________________________________________________________
Format: _
Length: _____
Tab...: __
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUMAX | Description |
|---|---|
| What it does | Generates the assignment of a minimum value for a field. This subprogram receives the name of a variable and its format and length. It generates the assignment of the minimum/maximum values for the field into the edit buffer. |
| PDAs used |
|
| Files accessed |
|

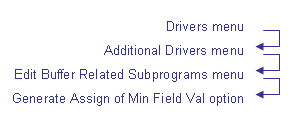

CTEMIMAX N a t u r a l C o n s t r u c t CTEMIMX1
Aug 14 Driver for subprogram CSUMIMAX 1 of 1
Field : _________________________________________________________________
Format: __ Minimum Value: _ Non Negative Min/Max: _ Tab: __
Length: _____ Descending...: _ DB2 Date/Time Stamp : _
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUMORE | Description |
|---|---|
| What it does | Returns information about a Natural Construct model. This subprogram receives the name of a model and returns the model description, generator mode and type, and the names of the model PDA, subprograms, and code frames. |
| PDAs used |
|
| Files accessed |
|

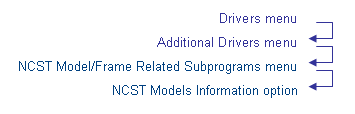

CTEMODEL N a t u r a l C o n s t r u c t CTEMODL1
Aug 14 Driver for subprogram CSUMODEL 1 of 1
*Model Name.......: ________________________________
Model Description:
No. Modify Subps: Modify Subps Code Frames Clear Subp...:
No. Code Frames : ------------ ----------- Read Subp....:
Generator Mode..: Save Subp....:
Generator Type..: Pre-Gen Subp.:
Display Window..: Post-Gen Subp:
Start Comment...: Doc Subp.....:
End Comment.....: Pda Name.....:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUMORE | Description |
|---|---|
| What it does | Builds the initial assignment for the
LEFT-MORE/RIGHT-MORE array. This subprogram receives a function (L for the
LEFT-MORE array, R for the RIGHT-MORE) and the number of panels used by a
program. These arrays contain the prompts displayed at the top left or right
corner of the panels. The prompts indicate the number of panels located to the
left or right of the current panel.
For example, to generate the initial value for the LEFT-MORE-PROMPT array for a program with two panels, enter: CSAMORE.#LEFT-RIGHT = 'L' CSAMORE.#MAX-WINDOW = 2 The subprogram writes the following to the source buffer: INIT < ' ','<1 more' > To generate the initial value for the RIGHT-MORE-PROMPT array for a program with two panels, enter: CSAMORE.#LEFT-RIGHT = 'R' The subprogram writes the following to the source buffer: INIT < '1 more >','' > Note: Tip: |
| PDAs used |
|
| Files accessed |
|

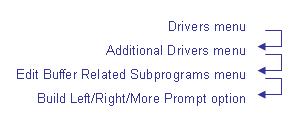

CTEMORE N a t u r a l C o n s t r u c t CTEMORE1
Aug 14 Driver for subprogram CSUMORE 1 of 1
Left/Right: _ (L or R)
Max Windows: __
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
Note
For more information on changing the size of the left or
right prompt, see Use
CSXDEFLT Overrides.
| CSUMPBOX | Description |
|---|---|
| What it does | Handles the map edit buffer. This subprogram receives a function and parameters (in CSAMPBOX). It initializes the map edit buffer or generates variable, array, and text control blocks into the edit buffer. |
| PDAs used |
|
| Files accessed |
|
| CSUMPCPR | Description |
|---|---|
| What it does | Replaces the map settings in the edit buffer with values from the CSAMPSET parameter data area. |
| PDAs used |
|
| Files accessed |
|
| CSUMPDUP | Description |
|---|---|
| What it does | Checks for the duplication of fields on a map. This subprogram determines whether there are any fields duplicated in the CSAMPFLD.FIELD-INFO(*) structure. If there are duplicate fields, CSASTD.MSG contains an error message when this subprogram is invoked. |
| PDAs used |
|
| Files accessed |
|
| CSUMPLAY | Description |
|---|---|
| What it does | Loads the map layout into the edit buffer and returns the map settings. This subprogram receives the name, layout, and type of map and loads the specified map into the edit buffer. It returns the map settings. |
| PDAs used |
|
| Files accessed |
|
CTEMPLAY N a t u r a l C o n s t r u c t CTEMPLY1
Aug 14 Driver for subprogram CSUMPLAY 1 of 1
*Layout..: ________ Error Code : Dc: Zp............:
Map Version: Ps: Pm............:
Profile....: Ls: Cursor Skip...:
Delimiter Class..: Std Keys......:
Ad...............: Justification :
Delimiter Char...: Col Shift.....:
Cd...............: Case Deflt....:
Write Statement..: CV.........: Auto Rule Rank:
Input Statement..: Filler Char: Enforce Attr..:
Help.............:
Help-As-Fld-Deflt:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUMPMMS | Description |
|---|---|
| What it does | Merges the settings for two maps. This subprogram merges the map settings from CSAMPSET and CSAMPOUT. The settings in CSAMPSET override the settings in CSAMPOUT and the result is stored in CSAMPOUT. |
| PDAs used |
|
| Files accessed |
|
| CSUMPOVL | Description |
|---|---|
| What it does | Checks the boundary on a map and
determines if there are overlapping fields. This subprogram checks whether the
fields specified in CSAMPFLD exceed the line size or page size of the available
map panel.
The available map panel is a block of consecutive lines on the panel. This block is determined by the specified page and line size, excluding the map layout and any PF-keys. The fields on the map cannot overlay the layout or PF-keys. |
| PDAs used |
|
| Files accessed |
|
| CSUMPREG | Description |
|---|---|
| What it does | Determines the available map area in a map layout. This subprogram determines the first and last line on a map that is available for editing in a specified map layout. |
| PDAs used |
|
| Files accessed |
|
CTEMPREG N a t u r a l C o n s t r u c t CTEMPRG1
Aug 14 Driver for subprogram CSUMPREG 1 of 1
*Layout: ________ First Available Line: Layout Page Size:
Last Available Line: Layout Line Size:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUMPTAB | Description |
|---|---|
| What it does | Calculates the absolute field
coordinates on a map and creates the field prompts. This subprogram receives
field information from CSAMPFLD and returns the absolute field positions and
prompts in CSAMPX-Y. Dots are added to each field prompt in a region to extend
its length to that of the longest prompt in that region (... for ISA format and
. . . for SAA format).
Note |
| PDAs used |
|
| Files accessed |
|
| CSUMPTST | Description |
|---|---|
| What it does | Tests the specifications for the map currently in the edit buffer. |
| PDAs used |
|
| Files accessed |
|
CTEMPTST N a t u r a l C o n s t r u c t CTEMTST1
Aug 14 Driver for subprogram CSUMPTST 1 of 1
Read in New Map: _ Page Size: 23_
*Map Name.......: ________ Line Size: 80_
Map Library....: DEVEX___
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUNATFM | Description |
|---|---|
| What it does | Builds a valid Natural format
definition from the formats and lengths specified. This subprogram receives the
format and length values and combines these to build a valid Natural format
string. For example, if you enter:
CSANATFM.FIELD-LENGTH = 9.0 CSANATFM.FIELD-FORMAT = 'P' CSUNATFM produces the following output: CSANATFM.#Natural-FORMAT = P9 |
| PDAs used |
|
| Files accessed |
|
CTENATFM ***** Construct Related subprograms ***** CTENTFM
Feb 25 - Driver for subprogram CSUNATFM - 03:50 PM
Field Format: _ NATURAL Format:
Field Length: ____________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUNEWX | Description |
|---|---|
| What it does | Generates a new user exit prompt. This subprogram receives the name of a user exit and generates a starting point (DEFINE EXIT exit-name, for example) for the user exit. It initiates a new user exit for sample subprograms that are capable of generating more than one exit. |
| PDAs used |
|
| Files accessed |
|
CTENEWX N a t u r a l C o n s t r u c t CTENEWX1
Aug 14 Driver for subprogram CSUNEWX 1 of 1
User Exit Name: ________________________________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--
help retrn quit |
| CSUOG | Description |
|---|---|
| What it does | Comments out all code within a
specified user exit. This subprogram receives the name of a user exit and
inserts comment indicators at the beginning of each line of code within the
specified exit.
Specify the name of the user exit in the #USER-EXIT (A65) variable. For example, to comment out all code within the MOVE-TO user exit, specify the following: 0040 01 #USER-EXIT (A65) . . . 3800 #USER-EXIT := 'MOVE-TO' 3810 CALLNAT 'CSUOG' #USER-EXIT |
| PDAs used |
|
| Files accessed |
|
| CSUPARMS | Description |
|---|---|
| What it does | Returns the value of a NATPARM
parameter. This subprogram receives a NATPARM parameter and returns its
corresponding value. Valid NATPARM parameters are:
Note |
| PDAs used |
|
| Files accessed |
|

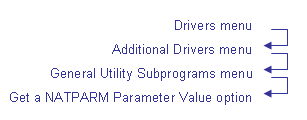

CTEPARMS N a t u r a l C o n s t r u c t CTEPARM1
Aug 14 Driver for subprogram CSUPARMS 1 of 1
Parameter....: __ (ID,CF,UL,TB,IA,DC,KD,ML)
Alpha Value..:
Numeric Value:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUPARTY | Description |
|---|---|
| What it does | Determines Natural data types and returns the byte length. This subprogram receives the format and length for a data type and indicates whether it is a valid Natural data type. If it is, this subprogram returns the byte length. |
| PDAs used |
|
| Files accessed |
|
| CSUPPER | Description |
|---|---|
| What it does | Converts the contents of the source buffer into upper case. This program reads through the source buffer and converts specified lower case characters into upper case. |
| PDAs used |
|
| Files accessed |
|

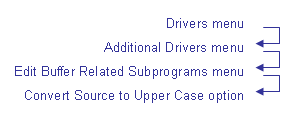

CTEPPER N a t u r a l C o n s t r u c t CTEMAP1
Aug 14 Driver for program CSUPPER 1 of 1
+------------------------------------+
| |
| PRESS ENTER TO EXECUTE. |
| |
+------------------------------------+
Read in New Source: _
*New Source Name...: ________
New Source Library: DEVEX___
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUREADS | Description |
|---|---|
| What it does | Reads the specification parameters for
a module. This subprogram receives the name of a source module. If the module
was generated using Natural Construct, the subprogram reads the source code and
returns the model parameter data area (PDA) containing the parameters used to
generate the module.
You can use the passed model PDA to call the model subprograms for the model used to generate the module. This subprogram also returns a data area describing the model and listing the names of the model subprograms. Note |
| Parameters/PDAs used |
|
| Files accessed |
|
Tip
If you know the name of the model used to generate the specified
module, you can pass its model PDA to CSUREADS rather than CU--PDA. After the
call to CSUREADS, the model PDA is populated with the parameters used to
generate that module.
| CSUREF | Description |
|---|---|
| What it does | Generates referential integrity checks
against foreign files. This subprogram is typically called three times: once to
generate the data structures (DATA) required by the generated code, once to
generate the update edits (UPDATE), and once to generate the delete edits
(DELETE). Set the value of CSAREF.FUNCTION-CODE to either DATA, UPDATE, or
DELETE.
After the first call, this subprogram returns the number of update and delete edits found. This avoids unnecessary subsequent calls. |
| PDAs used |
|
| Files accessed |
|
| CSUSCAN | Description |
|---|---|
| What it does | Scans for the existence of a string in the edit buffer. This subprogram receives a string and scans for (not absolute) the existence of the string in the edit buffer. |
| PDAs used |
|
| Files accessed |
|
CTESCAN N a t u r a l C o n s t r u c t CTESCAN1
Aug 14 Driver for subprogram CSUSCAN 1 of 1
String..: _______________________________________________________________
Absolute: _ (Mark if scan string need not be delimited by special chars)
Found...: _
Read in New Source: _
*New Source Name...: ________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUSELFV | Description |
|---|---|
| What it does | Selects fields/variables from views,
LDAs, or PDAs. This subprogram selects up to 40 fields/variables from up to 6
different views, LDAs, or PDAs and appends the selected fields/variables to
CSASELFV. Existing fields/variables in CSASELFV cannot be re-selected.
When selecting from data areas, you cannot select the following:
If you specify the select all option, then the first structure in the data area is selected. The invoking subprogram should issue an initial RESET statement to clear the structures in CSASELFV, such as: RESET CSASELFV CSASELFV.GENERAL-INFORMATION CSASELFV.FIELD-SPECIFICATION(*) |
| PDAs used |
|
| Files accessed |
|
| CSUSETKY | Description |
|---|---|
| What it does | Returns PF-key definitions from the
control record to support variable PF-keys in Natural
Construct. The PF-key names are returned in the
CSASETKY.#PF-NAME(*) array. The index for each array element corresponds to the
PF-key number. The following example indicates that PF1 is named
"help": #PF-NAME(1) = 'help' |
| PDAs used |
|
| Files accessed |
|

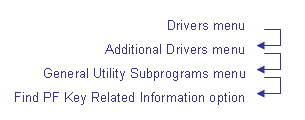

CTESETKY N a t u r a l C o n s t r u c t CTESETK1
Sep 07 Driver for subprogram CSUSETKY 1 of 1
Pf Name Pf Number Pf Key
------- --------- ------
main Main......: 12 Pf Main......: PF12
retrn Return....: 2 Pf Return....: PF2
quit Quit......: 3 Pf Quit......: PF3
test Test......: 4 Pf Test......: PF4
bkwrd Backward..: 7 Pf Backward..: PF7
frwrd Forward...: 8 Pf Forward...: PF8
left Left......: 10 Pf Left......: PF10
right Right.....: 11 Pf Right.....: PF11
help Help......: 1 Pf Help......: PF1
Available1: 5 Pf Available1: PF5
Available2: 6 Pf Available2: PF6
Available3: 9 Pf Available3: PF9
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUSETW | Description |
|---|---|
| What it does | Returns the SET CONTROL parameters to
define a window. This subprogram receives the parameters for a window (such as
frame, line size, column size, base line, and base column). It returns the SET
CONTROL parameters to define the window. For example, if the parameters are:
CSASETW.FRAME=TRUE CSASETW.LINE-SIZE=70 CSASETW.COLUMN-SIZE=5 This subprogram returns: CSASETW.SET-CONTROL.PARM='WBFL70C5' |
| PDAs used |
|
| Files accessed |
|
CTESETW N a t u r a l C o n s t r u c t CTESETW1
Aug 14 Driver for subprogram CSUSETW 1 of 1
Frame......: _ Line Size..: ___ Base Line..: ___ Required Width : ___
Column Size: ___ Base Column: ___ Required Height: ___
Set Control Parm:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUSORT | Description |
|---|---|
| What it does | Sorts a 2-dimensional array based on
specified column positions. This subprogram receives a 2-dimensional array and
sorts the array based on the desired column positions. A Natural SORTSIZE is
not required because the sort uses an internal bubble sort algorithm.
Note |
| Parameters/PDAs used |
|
| Files accessed |
|
| CSUSPLIT | Description |
|---|---|
| What it does | Splits lines in the source buffer that are longer than 72 characters. Only lines with code extending beyond column 72 are split; lines with comments extending beyond column 72, but not code, are ignored. If a text string (enclosed within quotes) extends beyond column 72, the entire string is moved to the next line. |
| PDAs used |
|
| Files accessed |
|

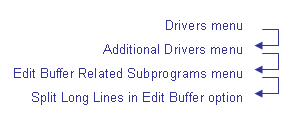

CTESPLIT N a t u r a l C o n s t r u c t CTEMAP1
Aug 14 Driver for program CSUSPLIT 1 of 1
+------------------------------------+
| |
| PRESS ENTER TO EXECUTE. |
| |
+------------------------------------+
Read in New Source: _
*New Source Name...: ________
New Source Library: DEVEX___
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUSUB | Description |
|---|---|
| What it does | Submits a job for execution. The JCL for the job must be in the source buffer. This subprogram is used in conjunction with the CSUSUB command. For information, refer to JCL Submit Utility (Mainframe), Natural Construct Generation. |
| PDAs used |
|
| Files accessed |
|
| CSUSUBP | Description |
|---|---|
| What it does | Returns information about a
Natural Construct model subprogram, such as the
PF-key settings and the window sizes. This subprogram receives the name of a
model subprogram and returns information about that subprogram. The information
corresponds to the data accessed through the Maintain Subprograms function.
Note |
| PDAs used |
|
| Files accessed |
|

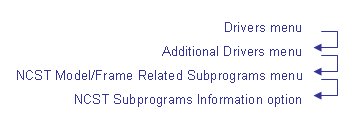

CTESUBP N a t u r a l C o n s t r u c t CTESUBP1
Aug 15 Driver for subprogram CSUSUBP 1 of 1
Subprogram Name: ________
Description....:
Backward Forward Flag: Window Length : Key Name No. Other Keys: _
Left Right Flag......: Window Columns: --------
Test Key Flag........:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUTEST | Description |
|---|---|
| What it does | Tests the subprograms for Natural Construct-generated models. This program tests the individual subprograms for Natural Construct-generated models. For information, see Test the Model Subprograms. |
| PDAs used |
|
| Files accessed |
|

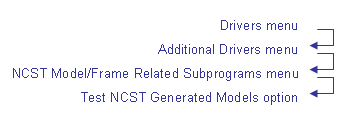

CSUTEST N a t u r a l C o n s t r u c t CSUTESM1
Aug 14 Single Module Test Program 04:54 PM
Code Function *Model: ________________________________
---- ------------------- Number all subprograms to be executed
R Release Variables | |
* Execute All Subp. V |
1-9 Execute One Subp. _ Clear : ________ V
E Edit source _ Mod 1: ________ _ Mod 6: ________
C Clear Edit Buffer _ Mod 2: ________ _ Mod 7: ________
? Help _ Mod 3: ________ _ Mod 8: ________
. Terminate _ Mod 4: ________ _ Mod 9: ________
---- ------------------- _ Mod 5: ________ _ Mod 10: ________
_ _ Pregen: ________ _ Save : ________
Source _ Documt: ________ _ Postgn: ________
Lines
Total: 133 Frame Parameter or Exit Name
_ Other : ________ ________________________________
_ Other : ________ ________________________________
_ Other : ________ ________________________________
_ Other : ________ ________________________________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSUTLATE | Description |
|---|---|
| What it does | Translates message text at runtime.
This subprogram receives a message number and position value and retrieves the
appropriate text. If the message text contains multiple items delimited by a
slash (/), the position value identifies which text is translated.
This subprogram is invoked from the CSUCURS and CSUCURS1 subprograms. |
| PDAs used |
|
| Files accessed |
|
| CSUTRANS | Description |
|---|---|
| What it does | Translates screen prompts before they
are displayed. This subprogram receives a defined data structure (typically a
translation LDA) containing SYSERR message numbers and translates them into the
appropriate text.
Notes:
|
| PDAs used |
|
| Files accessed |
|
CTETRANS ***** Natural Related subprograms *****
Oct 21 - Driver for subprogram CSUTRANS - 1 of 1
Translation LDA .... CTE-MAL
Input Parameters ... #GEN-PROGRAM *2000.1,.___________
#SYSTEM *2000.2,+___________
#GDA *2000.3,>___________
#TITLE *2001.1,+/16________
#DESCS *2001.2,.___________
#GDA-BLOCK *2001.3,>___________
#MAP-HEADER1 *2049.1,./18________
#MAP-HEADER2 *2049.2,>/18________
#USE-MSG-NR *2050.1,.___________
#PASSWORD-CHECK *2050.2,./20________
#MESSAGE-LIBRARY CSTLDA__
#LDA-NAME CTE-MAL_
#TEXT-REQUIRED X
#LENGTH-OVERRIDE __________0
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help quit reset bkwrd frwrd right left |
Note
This driver program is provided as a sample only. Because the
screen prompts translated by CSUTRANS vary depending on the application under
development, the driver program must be tailored to the application.
| CSUXCHK | Description |
|---|---|
| What it does | Scans for the existence of a user exit in the edit buffer. This subprogram receives the name of a user exit and scans the edit buffer for that name. |
| PDAs used |
|
| Files accessed |
|
CTEXCHK N a t u r a l C o n s t r u c t CTEXCHK1
Aug 14 Driver for subprogram CSUXCHK 1 of 1
User Exit Name....: ________________________________
Found.............:
Read in New Source: _
*New Source Name...: ________
New Source Library: DEVEX___
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CSU2LONG | Description |
|---|---|
| What it does | Converts a long variable name to an
abbreviation. This subprogram receives a long character string (32 characters)
and a desired length, and returns the truncated string (abbreviation). The
sixth position of the string is the first position truncated. If no length is
given, the default is 30.
If the long string is not longer than the desired length, the string is still truncated. For example, if the long string is "THIS-IS-A-LONG-VARIABLE" and the desired length is 20, the short string is "THIS-A-LONG-VARIABLE". Tip |
| PDAs used |
|
| Files accessed |
|
CTE2LONG N a t u r a l C o n s t r u c t CTE2LNG1
Aug 14 Driver for subprogram CSU2LONG 1 of 1
Long Name.....: ________________________________
Maximum Length: ___
Short Name....:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
The subprograms described in this section retrieve information from the Predict data dictionary. While some of these subprograms generate code, most supply information to the calling subprogram and the calling subprogram generates the code.
Notes:
This section covers the following topics:
If Natural Security is installed, the Predict-related subprograms restrict access to file and field information. Users can only retrieve information for files linked to the current application.
While generating a program, the program may access information about the same file many times. To avoid security checks each time, the access subprograms use the FILE-CODE field. This INPUT/OUTPUT field accesses file information and acts as a cipher code to avoid multiple security checks on the same file; it is available for all supplied subprograms.
If you are developing under Natural Security, include the FILE-CODE field in the model PDA for each file used multiple times during generation. The FILE-CODE field is passed in the PDA of the access subprogram and reassigned back to the model PDA after each call.
To avoid security checks for each access, the model subprogram that invokes CPUEL contains the following statements:
ASSIGN CPAEL.FILE-CODE = #PDA-FILE-CODE CALLNAT 'CPUEL' CPAEL CSASTD ASSIGN #PDA-FILE-CODE = CPAEL.FILE-CODE
Note:
For an example of using these subprograms to restrict access to
file and field information, refer to the CUSCGPR program in the SYSCST
library.
| CPU-OBJ | Description |
|---|---|
| What it does | Generates an external data area based
on a Predict file view. This subprogram receives the
view name and a set of logical variables that define the generation options. It
generates an external data area structure to match the view. It can also
generate the C# variables for each C* variable that corresponds to an MU or PE
and/or includes the corresponding REDEFINE fields for redefined fields or
superdescriptors.
Note |
| PDAs used |
|
| Files accessed |
|
CTE-OBJ N a t u r a l C o n s t r u c t CTE-OBJ1
May 12 Driver for subprogram CPU-OBJ 1 of 1
*File: ________________________________
Build Redefines..: _ Structure Level: _
SuperDe Redefines: _ Joined Fld Name: ________________________________
Cstars...........: _ Joined Length..: ___
Use Cutoff.......: _ Cutoff Value...: ________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CPU-OBJ2 | Description |
|---|---|
| What it does | Issues CALLNAT to the #CALLNAT
subprogram and passes information about elements that make up an object. This
subprogram receives:
An object is derived from view and key names. The view and key names are based on intra-object relationships defined in Predict (for example, ORDER-HEADER-HAS-ORDER-LINES). The elements of an object are the individual fields in the files that make up the object. This subprogram traverses the object tree and checks each element. For each element, it CALLNATs the #CALLNAT subprogram and passes it information about the element (for example, the format, length, and type). You can set options to limit or extend the number of elements to check (for example, whether to include all field redefinitions or just the lowest levels). Note |
| Parameters/PDAs used |
|
| Files accessed |
|
| CPU-OREL | Description |
|---|---|
| What it does | Adds entity information to a table.
This subprogram receives the name of an object and information about each
entity belonging to the object. It adds this information to a table.
Optionally, it can display tracing information.
Note |
| PDAs used |
|
| Files accessed |
|
| CPU-VIEW | Description |
|---|---|
| What it does | Generates field definitions based on
the contents of a Predict view. This subprogram
receives the name of a Predict view and a set of logical parameters defining
the options to be generated. It generates the view definition as it should
appear in the DEFINE DATA . . . END-DEFINE block of a
Natural program, subprogram, or helproutine.
This subprogram can also generate the C# variables for each C* variable that corresponds to an MU (multiple-valued) or PE (periodic group), and/or includes the corresponding REDEFINE fields for redefined fields or superdescriptors. You can use this subprogram to define a structure based on a view in Predict. The format and length for each field is generated. Notes:
|
| PDAs used |
|
| Files accessed |
|
CTE-VIEW N a t u r a l C o n s t r u c t CTE-VEW1
May 12 Driver for subprogram CPU-VIEW 1 of 1
*File....: ________________________________
View....: ________________________________ Gen 01 Level......: _
Omit Fld: ________________________________
Variable Indexes : _ Include Hyper DE...: _ Include MU Counter: _
Build Redefines..: _ Include Phonetic DE: _ Include PE Counter: _
SuperDe Redefines: _ Include Sub DE.....: _ Include MU Hyper..: _
Specify Formats..: _ Include Super DE...: _ Include PE Hyper..: _
Cstars...........: _ Redefine Cstars....: _
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CPUEL | Description |
|---|---|
| What it does | Returns
Predict information about a field in a file. This
subprogram finds a field in a Predict file and returns information about the
field.
Note |
| PDAs used |
|
| Files accessed |
|
CTEEL ***** PREDICT Related Subprograms ***** CTEEL11
Feb 25,13 - Driver for subprogram CPUEL - 1 more >
*File Name..: ________________________________ DDM Prefix: ________________
*Field Name : ________________________________
Simple Outputs: _
Fld Found...: X ADABAS Fld Name: AA Fld Format....: A Field Uq : U
Ver Found...: Fld Length.....: 8.00 Dynamic.......: De Type..: D
Lvl Number..: 1 Sign...........: Suppression...: Gr Struct:
Occurrences.: Fld Type.......: A/Descend.....: A Pe Ind...:
Fld Redefined : Rank..........:
Edit Mask...: Field Headings:
DDM Fld Name: PERSONNEL-ID PERSONNEL
Index Name..: ID
Fld Sequence: 100
NAT Length..: PRD Length..: 8.00 PREDICT Format: A
IMS Fld Name: IMS Root Key: Access Lvl:
IMS Fld Len : IMS Offset..: Update Lvl:
Character Set:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF12---
help retrn quit left right main |
Press Enter to display the second panel. For example:
CTEEL ***** PREDICT Related Subprograms ***** CTEEL21
< 1 more - Driver for subprogram CPUEL - 03:26 PM
File Name..: CST-EMPLOYEES
Field Name : PERSONNEL-ID
LEVEL
-----
DDM Field Name Field Type Is Redefined
Keyword Mask Keywords Returned
________________________________
________________________________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF12---
help retrn quit left right main
CPUEL completed normally. |
| CPUELDE | Description |
|---|---|
| What it does | Returns a description attribute from a specified file. This subprogram receives the name of a file and finds a description attribute. It returns the names of all fields that have the DESCRIPTION keyword. |
| PDAs used |
|
| Files accessed |
|
| CPUELKY | Description |
|---|---|
| What it does | Returns keywords linked to a field in a specified file. This subprogram receives the name of a file and field; it returns keywords linked to the field. |
| PDAs used |
|
| Files accessed |
|
| CPU-FREL | Description |
|---|---|
| What it does | Retrieves information about a foreign relationship and CALLNATs a pass-through subprogram. This subprogram passes CPA-FREL, CU--PDA, and CSASTD to the pass-through subprogram. |
| PDAs used |
|
| Files accessed |
|
| CPUELNX | Description |
|---|---|
| What it does | Returns field-by-field information if
it is called repeatedly. This subprogram receives the name of a
Predict file, the CPAELNX data area (contains
options for field types), and the CPRELNX data area (contains information about
current processing), and logically reads through the fields in the file.
Notes:
|
| PDAs used |
|
| Files accessed |
|
CTEELNX ***** PREDICT Related Subprograms ***** CTEENX11
Feb 25 - Driver for subprogram CPUELNX - 1 more >
*File Name....: _______________________________ First Time : X EOF.....:
DDM Prefix...: ________________
Redef Base Fld: _ Super Subs: _ Mus.......: _ Nulls Only : _ Counters: _
First Redefine: _ Phonetics : _ Pe Groups : _ Seq Only...: _ Groups..: _
All Redefines : _ Hypers....: _ Pes.......: _ Uq Only....: _ Fillers : _
Max Rede Rank : _ Derived...: _ Mus in Pes: _ VE Only....: _ REDE STR: _
Fld Name......: Fld Type...:
Fld Format....: Length.....:
PREDICT Format: Sign.......:
ADABAS Name...: Fld Def..: De Type..: Fld Count..: Rank..:
Level Number..: Fld Uq...: Pe Ind...: Occurrences:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit left right mai |
Press Enter to display the second panel. For example:
CTEELNX ***** PREDICT Related Subprograms ***** CTEENX21
< 1 more - Driver for subprogram CPUELNX - 03:38 PM
Field Headings
------------------------------
PERSONNEL IMS Offset....: Access Lvl:
ID IMS Fld Name..: Update Lvl:
IMS Fld Length:
Index Name..:
DDM Fld Name: PERSONNEL-ID
Edit Mask...:
Level Type Trail: -> -> -> -> -> -> ->
Redefine Trail..: -> -> -> -> -> -> ->
Fld is Redefined: Redefine Cnt:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit left right mai |
| CPUELRD | Description |
|---|---|
| What it does | Reads through the fields in a
Predict file, issues a CALLNAT for the specified
subprogram for each field, and passes information about the field to the
subprogram. It receives:
The subprogram traverses the specified file. For each selected field, it CALLNATs the passed subprogram to process the current field. |
| PDAs used |
|
| Files accessed |
|

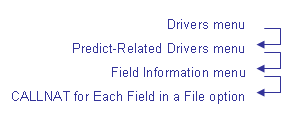

CTEELRD N a t u r a l C o n s t r u c t CTEELRD1
Aug 14 Driver for subprogram CPUELRD 1 of 1
*File Name.......: ________________________________ Fld Count......:
*Key Name........: ________________________________ Level..........:
CALLNAT..........: CTELRDSM Max Rede Rank..: _
ReDe Base Fld: _ SPs/SBs..: _ Pes...: _ Pe Group: _ Only VE..: _ Fillers: _
First ReDe...: _ Phonetics: _ Mus...: _ Mu in Pe: _ Only UQ..: _ Derived: _
All ReDe.....: _ Hypers...: _ Groups: _ Counters: _ Only Null: _ Rede St: _
Fld Name : Format : PRD Format :
DDM Field : Fld UQ : Length.....:
Index.... : Type...: Adabas Name:
Headings : De Type: Occurrences:
Pe Type: :
Edit Mask : Rank...: :
Type Trail: Redef..: ReDe Count :
ReDe Trail:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit bkwrd frwrd mai |
Note
If you change the name of the subprogram in the CALLNAT
field, the specified subprogram must have the same parameters as those in the
PDAs used by CPUELRD.
| CPUELVE | Description |
|---|---|
| What it does | Returns the verification rule names for a field in a file. This subprogram finds a field in Predict and returns the names of the verification rules of type N (Natural Construct). |
| PDAs used |
|
| Files accessed |
|
CTEELVE N a t u r a l C o n s t r u c t CTEELVE1
Aug 14 Driver for subprogram CPUELVE 1 of 1
*File Name : ________________________________ Field Found.........:
*Field Name: ________________________________ Num of Verifications:
+----------------------------------+
| 1__ VERIFICATION NAME |
| ------------------------------- |
| |
| |
| |
| |
| |
+----------------------------------+
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit bkwrd frwrd mai |
| CPUEXIST | Description |
|---|---|
| What it does | Verifies the existence of a specified Predict object. This subprogram receives the name and type of an object and verifies its existence in Predict. |
| PDAs used |
|
| Files accessed |
|
CTEXIST N a t u r a l C o n s t r u c t CTEXST1
Aug 14 Driver for subprogram CPUEXIST 1 of 1
Object Name: ________________________________ Object Exists:
Object Type: __ (SY,PR,KY,FI,DB,RL,VE)
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CPUFI | Description |
|---|---|
| What it does | Returns Predict information about a file. This subprogram receives the name of a file and returns Predict information about that file. |
| PDAs used |
|
| Files accessed |
|
CTEFI N a t u r a l C o n s t r u c t CTEFI1
Aug 14 Driver for subprogram CPUFI 1 of 1
*File Name: ________________________________ Ripp File Nr..:
File Type: Ext File Nr..:
Master File Name..:
Primary Seq Field :
DDM Prefix........: IMS DB Number.: 00
DDM File Name.....: IMS File Level:
IMS Parent File...: IMS File Nr...: 00
IMS Root File Name: IMS Seg Type..:
IMS DBD Name......: IMS DDM Suffix:
IMS Seg Name......: DDM Matches...:
IMS Root Seg Name :
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CPUHOLD | Description |
|---|---|
| What it does | Determines the hold field for a file. This subprogram receives the name of a file and determines the hold field for the file. To define a hold field, attach the HOLD-FIELD keyword to the field in Predict. |
| PDAs used |
|
| Files accessed |
|
| CPUKY | Description |
|---|---|
| What it does | Retrieves information related to a Predict keyword. You can use the keyword comments to store attribute values that can be returned by this subprogram. |
| PDAs used |
|
| Files accessed |
|
| CPUREDEF | Description |
|---|---|
| What it does | Generates redefinitions for compound keys, superdescriptors, or redefined fields in Predict. This subprogram invokes the CPUXPAND subprogram, which retrieves the components of the field to be redefined. Redefinitions can be generated in either inline or external data area format. |
| PDAs used |
|
| Files accessed |
|
CTEREDEF N a t u r a l C o n s t r u c t CTERDEF1
Aug 14 Driver for subprogram CPUREDEF 1 of 1
*File : ________________________________ Redef Level.........: _
*Field: ________________________________ Change Format N to A: _
Super Options
-------------
Include Deriv Level: _ Inside Histogram: _
Include Redef Level: _ Omit Format.....: _
Resets Required:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CPURL | Description |
|---|---|
| What it does | Returns information about a relationship in Predict. This subprogram receives a Predict relationship name and returns information about the relationship. |
| PDAs used |
|
| Files accessed |
|
CTERL N a t u r a l C o n s t r u c t CTERL1
Aug 14 Driver for subprogram CPURL 1 of 1
*Relationship Name: ________________________________ Relationship Found:
Relationship Type :
Relationship File Relationship Field Card
-------------------------------- -------------------------------- ----
Ddm Relationship Field Minimum Average Maximum
-------------------------------- ------- -------- -------
Constraint Type Upd: Db2 Constraint Name:
Constraint Type Del:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CPURLRD | Description |
|---|---|
| What it does | Retrieves the
Predict relationships for a specified file, and
optionally a specified type. This subprogram receives:
It finds relationships for the specified file, issues a CALLNAT to the specified subprogram, and passes the information about the relationship to the subprogram for processing. |
| PDAs used |
|
| Files accessed |
|
CTERLRD N a t u r a l C o n s t r u c t CTERLRD1
Aug 14 Driver for subprogram CPURLRD 1 of 1
*File Name.............: ________________________________
Relationship Type.....: _
CALLNAT...............: CTELRDSM
Relationship Count....:
Relationship Name.....:
Relationship File ....:
Relationship Field....:
DDM Relationship Field:
Cardinality...........:
Minimum...............:
Average...............:
Maximum...............:
DB2 Constraint Name...:
Constraint Type Upd...:
Constraint Type Del...:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10-
help retrn quit |
| CPUSUPER | Description |
|---|---|
| What it does | Returns the definition for a super/subdescriptor (or DB2 compound key). This subprogram receives the name of a superdescriptor or subdescriptor (or DB2 compound key) and the name of the Predict file or table to which it belongs. It returns information about the derived fields. |
| PDAs used |
|
| Files accessed |
|
CTESUPER ***** Predict Related Subprograms ***** CTESUPR1
Oct 09 - Driver for subprogram CPUSUPER - 03:08 PM
*File Name : ________________________________ Superde Length....:
*Field Name: ________________________________ Superde Format....:
Contains Repeating Fields: C#Derivation Group:
+-------------------------------------------------------------------------
| 1__ Start End A/ Fld Sup PE Dimension
| Source Field Name Char Char D Typ Opt Ind 1 2 3
| -------------------------------- ----- ----- - --- --- --- --- --- ---
|
|
|
|
|
+-------------------------------------------------------------------------
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit bkwrd frwrd mai |
| CPUUNIQ | Description |
|---|---|
| What it does | Determines the unique description field (primary key). This subprogram receives the name of a file and determines the unique description field (primary key) for the file. |
| PDAs used |
|
| Files accessed |
|
| CPUVE | Description |
|---|---|
| What it does | Prints verification rules to the source buffer. This subprogram prints either the code or the data definition for a type N (Natural Construct) verification rule to the source buffer. |
| PDAs used |
|
| Files accessed |
|
CTEVE N a t u r a l C o n s t r u c t CTEVE1
Aug 14 Driver for subprogram CPUVE 1 of 1
Verification Name: ________________________________ Verification Found:
*User View Name...: ________________________________ Rule Generated....:
*DDM Field Name...: ________________________________
Generate Data....: _
Occurrences......: _______________
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit mai |
| CPUVERUL | Description |
|---|---|
| What it does | Returns information about Predict verification rules. |
| PDAs used |
|
| Files accessed |
|
| CPUXPAND | Description |
|---|---|
| What it does | Expands a super/subdescriptor or
redefined field. This subprogram receives:
It expands the specified super/subdescriptor (or DB2 compound key) into its underlying components. For each component, it CALLNATs the specified subprogram. Note |
| PDAs used |
|
| Files accessed |
|

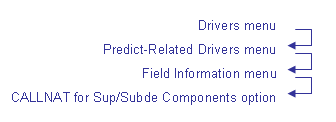

CTEXPAND N a t u r a l C o n s t r u c t CTEXPN11
Aug 14 Driver for subprogram CPUXPAND 1 of 3
*File Name......: ________________________________ Phantom Bytes: _
*Base Field Name: ________________________________ Fillers......: _
CALLNAT.........: CTELRDSM P
Base Field Information Field Headings
---------------------- --------------------------------
Sequence: Adabas Field Name: :
Format..: Field Definition : :
Length..: Field Type.......: :
Edit Mask......:
DDM Field Name :
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit left right mai |
Note
If you change the name of the subprogram in the CALLNAT
field, the specified subprogram must have the same parameters as those in the
PDAs used by CPUXPAND.
Press Enter to display the second panel. For example:
CTEXPAND N a t u r a l C o n s t r u c t CTEXPN21
Aug 14 Driver for subprogram CPUXPAND 2 of 3
Derived Field Information Field Headings
------------------------- ----------------------------------
First Showing.: :
Field Count...: :
Whole Field...: :
Sequence......: Adabas Field Name: Start Character:
Format........: Field Definition : End Character:
Length........: Field Type.......:
Edit Mask.....:
Field Name....:
DDM Field Name:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit left right mai
Scrolling performed |
Press Enter to display the third panel. For example:
CTEXPAND N a t u r a l C o n s t r u c t CTEXPN31
Aug 14 Driver for subprogram CPUXPAND 3 of 3
Ascending/Descending
Expanded Field Information Field Headings
-------------------------- ----------------------------------
Field Count..: :
Offset Start..: :
Offset End....: :
Sequence......: Predict Format...: Special characteristic:
Format........: Field Definition :
Length........:
Edit Mask.....:
Field Name....:
DDM Field Name:
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF1
help retrn quit left right mai
Scrolling performed |
You can attach the following helproutines to fields that require the input of Predict information. They are active helproutines that fill the field to which they are attached.
Note
Some of the following routines provide help information, although
they are coded as subprograms and not as helproutines. This provides greater
flexibility to access help information.
This section covers the following topics:
| CPHEL | Description |
|---|---|
| What it does | Browses the fields in a file for selection. This subprogram receives the name of a Predict file. (If no file name is specified, it provides file selection.) It browses all the fields in the specified file and returns the selected field. |
| Attached to | Input of a Predict field name. |
| PDAs used |
|
| Files accessed |
|
| CPHELB | Description |
|---|---|
| What it does | Browses the fields in a file for
selection. This subprogram receives the name of a file and browses all the
fields in the file for selection. Optionally, this subprogram can browse only
the descriptor fields.
Note |
| PDAs used |
|
| Files accessed |
|
| CPHFI | Description |
|---|---|
| What it does | Browses Predict views/files for selection. This helproutine browses all the views and files in Predict for selection. |
| Attached to | Input of a Predict file name. |
| Parameters used |
|
| Files accessed |
|
| CPHFIB | Description |
|---|---|
| What it does | Browses Predict views and files for selection. |
| Parameters/PDAs used |
|
| Files accessed |
|
| CPHPRED | Description |
|---|---|
| What it does | Browses
Predict objects (by object type) for selection. This
helproutine receives an object type and browses the Predict objects of that
type for selection. Valid object types are:
|
| Attached to | Input of a Predict object type. |
| Parameters used |
|
| Files accessed |
|
| CPHRL | Description |
|---|---|
| What it does | Browses the names of Predict relationships for selection. This helproutine receives the names of a Predict relationship and a file and returns the selected relationship. If a file name is specified, the helproutine browses only the Predict relationships for that file. If no file name is specified, it browses all existing relationships. |
| Attached to | Input of a Predict relationship name. |
| Parameters used |
|
| Files accessed |
|
| CPHSET | Description |
|---|---|
| What it does | Sets a flag to indicate that help was
requested for a field. This helproutine receives the name of a parameter and
sets a flag to indicate help was requested. The parameter should be checked
after the INPUT statement. If a flag is set, for example, reset the flag and
issue CALLNATs to do the help processing.
This technique allows the helproutine to access all data entered in a single panel transaction. When you generate a browse subprogram, for example, you can type the file name (without pressing Enter) on the Additional Parameters panel and request help for a field. |
| Attached to | Any input field. |
| Parameters used |
|
| Files accessed |
|
The subprograms described in this section are general purpose generation subprograms. These subprograms are identified by a CU-- prefix.
| CU--EM | Description |
|---|---|
| What it does | Returns edit masks used by the generated programs for displaying date and time fields. This subprogram can be changed to suit your standards. Changes to this routine should be made in a higher level steplib to minimize maintenance. Unless you modify your models, the date and time field edit masks should not be longer than nine characters. |
| PDAs used |
|
| CU--LRP | Description |
|---|---|
| What it does | Returns the left and right prompt displayed on the Natural Construct panels. The left prompt displays the current month and day in *DATX (EM=LLL''DD), which can be language sensitive. The right prompt displays the "1 of 1" or "1 of 3" panel indicators, depending on the number of panels. This prompt uses several control record fields to build the prompt position indicators, which are compressed on both sides of the "of" indicator. |
| Parameters/PDAs used |
|
| CU--MSG | Description |
|---|---|
| What it does | Returns the text for an application
error message. It receives a message number in #PDA-FRAME-PARM. After ensuring
this literal is numeric, it retrieves the short message for the SYSTEM
application and the *Language variable.
The error message is written (left-justified and enclosed within single quotes) to the source buffer, thus substituting for the frame parameter. The usual search criteria and defaults (English) apply. The following example shows a code frame: USE-MSG-NR 1 ASSIGN MSG-INFO.##MSG-NR = 8123 " ELSE 1 ASSIGN MSG-INFO.##MSG = " SUBPROGRAM:CU--MSG PARAM: 8123 N " |
| PDAs used |
|
| Files accessed |
|
| CU--UL | Description |
|---|---|
| What it does | Returns the underscore line used on Natural Construct panels. This subprogram receives an underscore character set and creates the underscore line. The character(s) specified on the control record (A4) is duplicated to fill the A80 length. |
| Parameters/PDAs used |
|
