Remote procedure call (RPC) techniques establish a framework for communication between server and client systems that can be collocated on the same computer or based on a network of identical or heterogeneous machines and operating systems. Several basically similar methods are known.
This documentation describes the theory of operation and the use of the RPC techniques provided by Natural to enable the design and to simplify the application of distributed software systems. For information on other products that may be involved in a Natural RPC-based environment, see the documentation of EntireX RPC for 3GL, Entire Network, EntireX Broker.
For full details of the functions provided to maintain remote procedure calls, refer to the Natural SYSRPC Utility documentation.
This documentation applies to all platforms on which Natural can be used. But, depending on the Natural documentation set you are currently using, the following differences exist:
The examples of using the Natural utility SYSRPC exhibit
platform-specific maps (with either GUI or CUI interface).
Under Natural for Windows and Linux, the RPC-specific parameters are available as profile parameters.
Under Natural for z/OS, the parameters are available as keyword subparameters of
profile parameter RPC or parameter macro NTRPC.
When used in this documentation, the notation vrs or vr represents the relevant product version (see also Version in the Glossary).
The Natural RPC facility enables a client Natural program to issue a CALLNAT statement to invoke a
subprogram in a server Natural. The Natural client and server sessions may run on the
same or on a different computer. For example, a Natural client program on a Windows
computer can issue a CALLNAT statement against a z/OS server in order to
retrieve data from a z/OS database. The same Windows computer can act as a server if a
Natural client program running under, for example, Linux issues a CALLNAT
statement requesting data from this server Natural.
Natural RPC exploits the advantages of client server computing. In a typical scenario, Natural on a Windows client computer accesses server data (using a middleware layer) from a Natural on a z/OS computer. The following advantages arise from that:
The end user on the client side can use a Natural application with a graphical user interface.
A large database can be accessed on a z/OS server.
Network traffic can be minimized when only relevant data are sent from client to server and back.
The Natural RPC (Remote Procedure) Call offers the following modes of operation:
non-conversational mode (in the following texts this mode is meant unless otherwise specified)
These modes are described in detail in the following sections. For a comparison of the advantages and disadvantages of these modes, refer to Conversational versus Non-Conversational Mode.
You can use the Natural RPC on various platforms under the following operating systems:
z/OS Environments
Natural RPC on z/OS is supported under the following TP monitors:
Com-Plete
CICS
TSO
Also, it is available in batch mode.
On all of these platforms, Natural can act as both client and server.
Windows
Linux
On all of these platforms, Natural can act as both client and server.
Non-Natural environments (3GL and other programming languages) are supported on the client and the server side. Thus, a non-Natural client can communicate with a Natural RPC server, and a Natural client can communicate with a non-Natural RPC server. This is enabled by the use of the EntireX RPC.
The non-conversational mode should be used only to accomplish a single exchange of data with a partner. See also Conversational versus Non-Conversational Mode.
The Natural RPC technique uses the Natural statement CALLNAT, so that both local and remote subprogram calls can
be issued in parallel. Remote program calls work synchronously. As a remote procedure

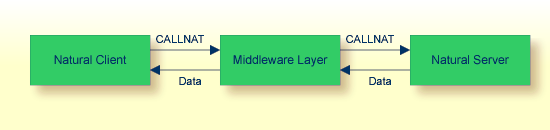

call, a CALLNAT would, simply speaking, take the following route:
The CALLNAT issued from the Natural client is routed via a middleware layer
to the Natural server which passes data back to the client.
Usually, the middleware layer consists of the EntireX Broker which uses the ACI protocol. EntireX Broker uses either Entire Net-Work or TCP/IP as communication layer.
A detailed example of the RPC control flow is described below.

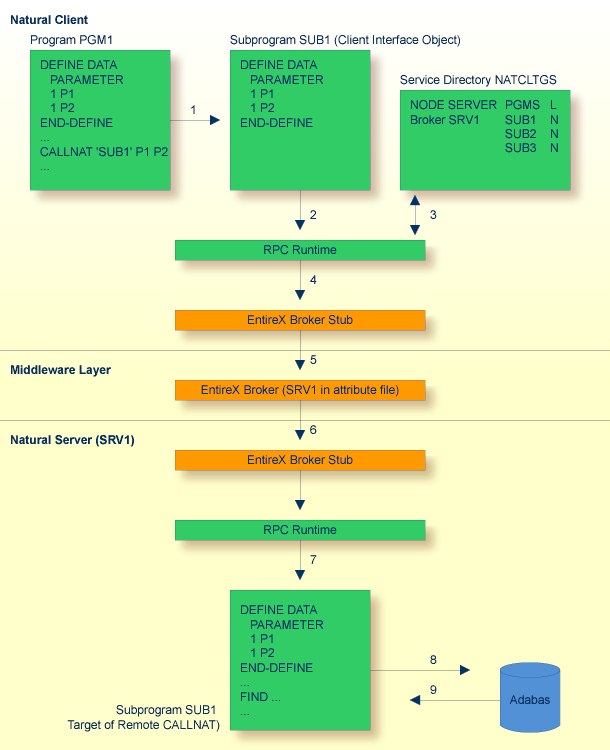

CALLNAT control flow details
in a remote procedure are illustrated below. For greater clarity, the return path is not
shown, but it is analogous; the numbers refer to the description:
From the Natural client, the program PGM1 issues a CALLNAT to the subprogram
SUB1. PGM1 does not know if its CALLNAT
will result in a local or in a remote CALLNAT.
As the target SUB1 resides on a server, the CALLNAT
accesses an interface object
SUB1 instead. This client interface object has been created
automatically or manually (by using the SYSRPC utility's interface
object generation (IG) function).
The interface object has the same name as the target subprogram and contains
parameters identical with those used in program PGM1 and in the target
subprogram SUB1 on the server. It also contains control information
used internally by the RPC.
If the AUTORPC keyword subparameter of Natural
profile parameter RPC or parameter macro
NTRPC is set to ON and Natural
cannot find the subprogram in the local environment, Natural interprets this as a
remote procedure call and generates the parameter data area
(PDA) dynamically during runtime.
Natural also tries to find this subprogram in the service
directory
NATCLTGS.
For further information on the SYSRPC interface object generation
function, see Creating
Interface Objects.
If you want to work without interface objects, see Working with Automatic Natural RPC Execution.
The interface object then sets up a CALLNAT to an RPC client service
routine.
The client RPC runtime checks in the service directory NATCLTGS on
which node and server the CALLNAT is to be performed and whether a
logon is required.
The CALLNAT data including the parameter list and, if required, the
logon data are passed to a middleware layer.
In this example, this middleware layer consists of the EntireX Broker. Therefore,
the CALLNAT data is first passed to an EntireX Broker stub on the
client.
From the EntireX Broker stub, the CALLNAT data is passed to the
EntireX Broker. The EntireX Broker is a product that can reside:
on the client computer
on the server computer or
on a third platform.
For the data to be passed on successfully, the server SRV1 must be
defined in the EntireX Broker attribute file and SRV1 must be already
up, thus having registered with EntireX Broker.
For information on how to define servers in the EntireX Broker attribute file, see the EntireX Broker documentation.
From the middleware layer, the CALLNAT data is passed on to the
EntireX Broker stub on the Natural Server platform and from there to the RPC server
service routine.
The RPC server service routine validates the logon data (if present) and performs a logon (if requested).
The RPC server service routine invokes the target subprogram SUB1 and
passes the data, if requested.
At this point, the target subprogram SUB1 has all the required data
to execute just as if it had been invoked by a local program PGM1.
Then, for example, the subprogram SUB1 can issue a FIND statement to the server's Adabas
database. SUB1 does not know whether it has been started by a local or
by a remote CALLNAT.
Adabas FINDs the data and passes them to SUB1.
Then, SUB1 returns the Adabas data to the calling server service
routine. From there, it is passed it back to PGM1 via the middleware
layer. It takes the same route as described in Steps 1 to 8, but in reverse
order.
A conversational RPC is a static connection of limited duration between a client and a
server. It provides a number of services (subprograms) defined by the client, which are
all executed within one server task that is exclusively available to the client for the
duration of the conversation. It is implemented in a program using an OPEN CONVERSATION statement and a
CLOSE CONVERSATION
statement.
Multiple connections (conversations) can exist at the same time. They are maintained by the client by means of conversation IDs, and each of them is performed on a different server. Remote procedure calls which do not belong to a given conversation are executed on a different server, within a different server task.
During a conversation, you can define and share a data area called context area between the remote subprograms on the server side. For further information, see Defining Context Variables for Natural RPC in the Natural Statements documentation.
A conversation may be local or remote.
OPEN CONVERSATION USING SUBPROGRAM 'S1''S2'
CALLNAT 'S1' PARMS1
CALLNAT 'S2' PARMS2
CLOSE CONVERSATION ALL
Both subprograms (S1 and S2) must be accessed at the same
location, that is, either locally or remotely. It is not admissible to mix up local and
remote CALLNATs within a conversation. If the subprograms are executed
remotely, both subprograms will be executed by the same server task.
Analogously to non-conversational RPC CALLNATs, conversations may first be
written and tested locally and can then be transferred to the servers.
Local Subprogram Execution
If you execute subprograms locally, a subprogram may not call another subprogram
which is a member of the conversation.
Other subprograms not listed in the OPEN
CONVERSATION statement may be called. They are however
executed in non-conversational mode.
Remote Subprogram Execution
If you execute subprograms remotely, a subprogram S1 may call another
subprogram S2 which is a member of the conversation.
This CALLNAT will be executed in non-conversational mode because it
was invoked indirectly. Thus, the subprogram S2 does not have access to the context
area.
In a client-server environment where several clients access several servers in
non-conversational mode, there may be the problem that identical CALLNAT requests from different clients
are executed on the same server.
This means, for example, that a CALLNAT 'S1' from Client 1 executes
Subprogram S1 on Server 1 (S1 is writing a record to the
database). The transaction for Client 1 is not yet complete (no END TRANSACTION) when Client 2 also
sends a CALLNAT 'S1' to Server 1, thus overwriting the data from Client 1. If
Client 1 then sends a CALLNAT 'S2' (meaning END TRANSACTION),
Client 1 supposes its data have been saved correctly, although in fact the data from
Client 2's identical CALLNAT were saved.

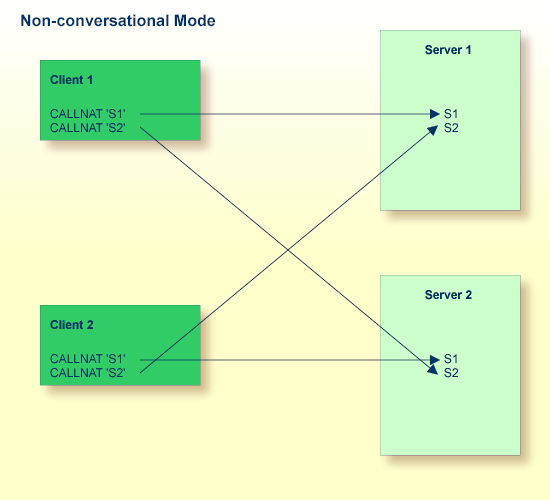

The diagram below illustrates this with two clients and two servers. In such a scenario,
you cannot control whether two identical CALLNATs from two different clients
access the same subprogram on the same server:
In the above example, CALLNAT 'S2' from Client 1 can access subprogram
S2 on Server 1 and on Server 2. CALLNAT 'S2' from Client 2 has
the same choice.
Similarly, CALLNAT 'S1' from Client 1 could access Subprogram
S1 on Server 1 and on Server 2, while CALLNAT 'S1' from Client
2 has the same choice.
It is obvious that interference can be a problem here if the subprograms are designed to be executed within one server task context.

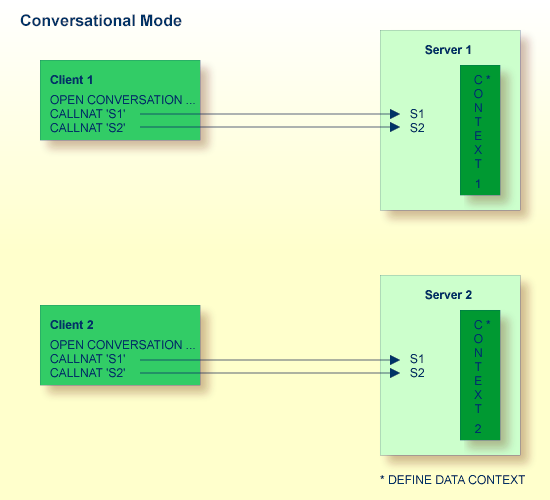

You can avoid the potential problems of a non-conversational RPC by defining a more complex RPC transaction in conversational mode:
You do this by opening a conversation. This involves the use of the OPEN
CONVERSATION statement on the client side, referring to CALLNAT 'S1'
and CALLNAT 'S2'. Opening such a conversation reserves one entire server task
(for example, Server 1) and no other remote CALLNATs may interrupt this
conversation on this server before this conversation has been closed. In addition, you can
define a common context area for the two subprograms on the server side by using the
DEFINE DATA CONTEXT statement.
As a general rule, the following applies:
Use the conversational RPC to ensure that a defined list of subprograms is executed exclusively within one context.
Use the non-conversational RPC if each of your subprograms can be used within a different server task or if the transaction does not extend over more than one server call. The advantage of this is that no server blocks over a significant amount of time and you only need a relatively small number of server tasks.
A possible disadvantage of conversational RPCs is that you reserve an entire server
task, thus blocking all other subprograms on this server. As a consequence, other
CALLNATs might have to wait or more server tasks must be started.
The database transactions on the client and server sides run independent of each other.
That is, an END TRANSACTION or
BACKOUT TRANSACTION executed
on the server side does not influence the database transaction on the client side and
vice-versa.
At the end of each non-conversational CALLNAT and at the end of each
conversation, an implicit BACKOUT
TRANSACTION is executed on the server side. To commit the changes
made by the remote CALLNAT(s), you have the following options:
Non-conversational CALLNAT
Execute an explicit END
TRANSACTION before leaving the CALLNAT.
Set the Natural profile parameter ETEOP to ON. This results in an implicit
END TRANSACTION at the
end of each non-conversational CALLNAT.
Depending on the setting of the parameter SRVCMIT, the END
TRANSACTION is executed either before the reply is sent to the client
(SRVCMIT=B) or after the reply has been successfully sent to the client
(SRVCMIT=A). SRVCMIT=B is the default and is compatible
with earlier versions of the RPC.
Conversational CALLNAT
Execute an explicit END
TRANSACTION on the server before the conversation is terminated by
the client
Set the Natural profile parameter ETEOP to ON. This results in an implicit
END TRANSACTION at the end of each conversation.
Depending on the setting of the parameter SRVCMIT, the END
TRANSACTION is executed either before the reply is sent to the client
(SRVCMIT=B) or after the reply has been successfully sent to the client
(SRVCMIT=A). SRVCMIT=B is the default and is compatible
with earlier versions of the RPC.
Before executing the CLOSE
CONVERSATION statement, call the application programming
interface USR2032N on the client side. This will cause an implicit
END TRANSACTION at the end of the individual conversation.
The following Natural limits apply to each individual remote CALLNAT
execution on the Natural RPC server:
| Natural Profile Parameter | Type of Limit |
|---|---|
LT |
Limit for Processing Loops |
MADIO |
Maximum DBMS Calls between Screen I/O Operations |
MAXCL |
Maximum Number of Program Calls |
MT |
Maximum CPU Time |
These limits are reset after each remote CALLNAT execution, and you can
enforce certain limits on each remote CALLNAT execution.
This measure helps to avoid unpredictable error situations when the execution of a client request reaches one of the limits due to the processing of a previous client request.
Both subprograms S1 and S2 (shown in the figure above) must be
accessed at the same location, i.e. either locally or remotely. You may not mix up local
and remote CALLNATs within a conversation. If the subprograms are executed
remotely, both subprograms will be executed by the same server task.
The following table provides an overview of important key terms used in the
SYSRPC Utility and the Natural RPC documentation:
| Term | Explanation |
| Client Stub | Obsolete term, see Client Interface Object below. |
| EntireX Broker Stub | Interface between the Natural RPC runtime and the EntireX Broker transport layer which exchanges marshalled data between client and server. |
| Impersonation | Impersonation assumes that access to the operating system on which a Natural RPC server is running is controlled by an SAF-compliant external security system. User authentication is performed by this external security system. Impersonation means that after the authentication has been successful and the user's identity is established, any subsequent authorization checks will be performed based on this identity. This includes authorization checks for access to external resources (for example, databases or work files). After successful authentication the user cannot "change his/her identity", that is, he/she cannot use a different user ID. See Impersonation in Using Security. |
| Interface Object | In earlier versions of EntireX, the term "stub" was also used to refer to application-dependent, Workbench-generated pieces of code for issuing and receiving remote procedure calls. These objects are now referred to as interface objects. |
| Client Interface Object |
Accepts the The interface object stub is the local subprogram via which the server subprogram is called. The client interface object has the same name and contains the same parameters as the corresponding server subprogram. |
NATCLTGS |
The name of the Natural subprogram generated with the SYSRPC
utility to implement the service
directory (see below).
|
| Node Name | The name of the node to which the remote CALLNAT is sent.
In
case of communication via the EntireX Broker, the node name is the name of the
EntireX Broker for example, as defined in the EntireX Broker attribute file, in
the field |
| RPC Parameters |
All parameters available to control a Natural RPC are described in detail in the Natural Parameter Reference documentation. See the section Profile Parameters. The RPC parameters are included in the parameter macro
See RPC - Remote-Procedure-Call Settings and NTRPC Macro Syntax (in the Natural Parameter Reference documentation). |
| RPC Server | An RPC server is either a Natural or an EntireX RPC server. |
| Service Directory | The service directory contains information on the services (subprograms) that
a server provides. It can be locally available on each client node, or it can be
located on a remote directory server, which is referenced on Windows and Linux by
profile parameter RDS, and on z/OS by the corresponding
keyword subparameter RDS of profile parameter RPC or
parameter macro NTRPC.
|
| Server Name |
The name of the server on which the In case of communication via EntireX Broker, the server name is the name as
defined in the EntireX Broker attribute file in the field
|
| Server Task | A Natural task which offers services (subprograms). This is typically a batch task or asynchronous task. It is identified by a server name. |
