This documentation contains detailed information which you will need when you want to spool the output of your Natural programs and route it to specific physical printers. It applies to all platforms and TP monitors with which Natural Advanced Facilities can be used: CICS, IMS TM. As a rule, the screens in this documentation apply to the CICS version.

In the remainder of this documentation, Natural Advanced Facilities is also referred to as NAF.

For more information, check Installing Natural Advanced Facilities on z/OS in the Installation for z/OS documentation.

This document covers the following topics about Natural Advanced Facilities:

• General Information about Natural Advanced Facilities

• Terminology

• NATSPOOL Objects

• Starting NATSPOOL

• Invoking a NATSPOOL Function

General Information about Natural Advanced Facilities

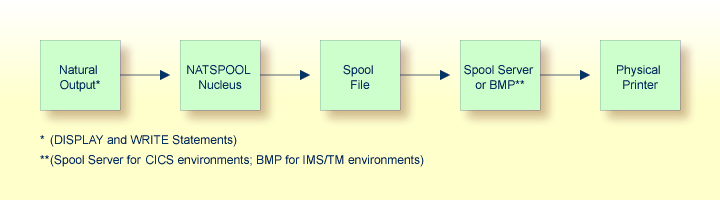

Natural Advanced Facilities consists of NATSPOOL, the spooling and report management system. NATSPOOL manages Natural program output, thus enabling the output (that is, a report) to be directed to a physical printer. NATSPOOL also supports the Natural hardcopy facility.

All reports are stored in the spool file. A report may be directed to the physical printer in one of the following ways:

• automatically at the end of the program which generated the report; or

• by using the corresponding NATSPOOL functions.

In IMS TM environment, the spool file must be an Adabas file. In CICS environments, it may be an Adabas file or a VSAM file (Natural for VSAM must be installed in this case).

Terminology

This section explains the most important terms used in this documentation.

NATSPOOL Objects

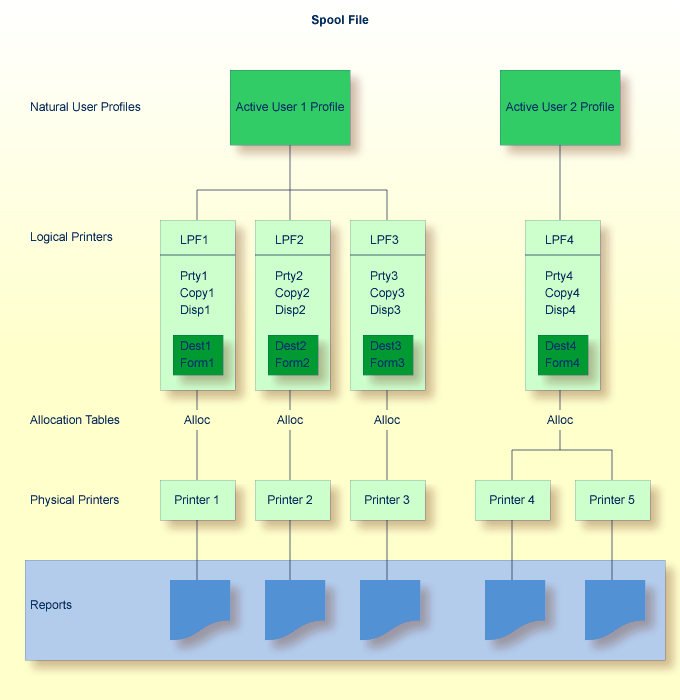

The following illustration shows the logical connections between NATSPOOL objects.

A maximum of 31 logical printers and one logical printer for hardcopy may be defined for one user.

A maximum of 16 physical printers may be allocated to each logical printer. In the above diagram, a total of 48 printers may be allocated to User 1, and a total of 16 printers to User 2.

Each logical printer requires 2 KB of storage, which is allocated at Natural initialization. Natural executes a 2 KB GETMAIN (REQM) command for each printer (n) where

NTPRINT (1-n), AM=NAF

If the thread size (CICS) or the roll-slot size (IMS TM) is not large enough, a Natural error message is issued and Natural is not initialized.

The BUS (buffer usage statistics) command can be used to obtain information on the sizes of the buffers allocated by Natural Advanced Facilities. The following information is provided:

PRINTnn

which contains the buffer for printer nn.

Example - Active User 1:

A WRITE (1) statement issued by User 1 causes the report to be printed on Printer 1, a WRITE (2) statement causes the report to be printed on Printer 2, and a WRITE (3) statement causes the report to be printed on Printer 3.

Example - Active User 2:

A WRITE (1) statement issued by User 2 causes the report to be printed on either Printer 4 or Printer 5, depending on which printer is in FREE status. If both printers are in FREE status, the first printer in the allocation table is used (for example, Printer 4 in the above diagram).

Starting NATSPOOL

To start NATSPOOL

• Enter the Natural system command SYSPOOL.

The Natural Spool Administration menu appears with the cursor positioned in the Command line.

Time 12:39:35        *** Natural Spool Administration ***      Date 2022-04-06
User SAG                            M e n u                    File 19999/1241

      Administration                            Information

      10 Reports/Queues                         20 Cross-Reference
      11 Devices                                21 Statistics
      12 Abstracts                              22 Look at Spool File
      13 Applications                           23 CALLNAT Handling
      14 Change Spool File


      Maintenance                               Control Functions

      30 Spool File Properties                  40 Check Spool File
      31 Objects                                41 Logging Data
      32 Mass Update                            42 Create Test Reports
      33 Hardcopy Allocations                   43 Delete Reports by Date
      34 Transfer Objects

Enter function, mark with cursor, or press a PF-key.
Command ===>
Enter-PF1---PF2---PF3---PF4---PF5---PF6---PF7---PF8---PF9---PF10--PF11--PF12---
      Help        Exit  Repor Devic Flip  Abstr Appli Cross Stati Look  Canc

The individual NATSPOOL functions are described in detail in individual sections of this documentation.

Invoking a NATSPOOL Function

To invoke a function, proceed in any of the following ways

• Enter a command (and object type) in the Command line.

  Or:
  enter a number in the Command line.

  Or:
  select a function with the cursor.

  Or:
  press the PF key assigned to a function.

Command Line

Command and Object Type

To invoke a function, enter a command (and object type) in the Command line.

For example, to display the device status (Function 11), enter DISPLAY DEVICE in the Command line.

To display a list of available commands, enter an asterisk (*) or a question mark (?) in the Command line. To display a list of all available object types for a specific command, mark this command in the list with any character.

Number

On a selection screen or window, each function is prefixed by a number.

To invoke a function, enter the number of this function in the Command line. For example, to invoke the function Layout of Spool File, enter 30 in the Command line. The Layout of Spool File window will then appear.

In the Layout of Spool File window, each function is prefixed by a number and can also be invoked by entering the corresponding number. For example, to invoke the function Display Last Modification, enter 8 in the Command line of this window.

If you know the number of a function which is listed in a window, you can also directly invoke this function. To do so, concatenate the individual numbers with a period in between. For example, to invoke the above mentioned function Display Last Modification directly, enter 30.8 in the Command line.

Cursor Selection

To select a function with the cursor, place the cursor on the number of a function and press Enter.

PF Keys

Most functions are assigned to PF keys.

The PF-key lines at the bottom of the screen indicate which function is assigned to which PF key. To invoke a function, simply press the PF key assigned to this function.

For example, on the NATSPOOL menu, the function Reports/Queues is assigned to PF4.

The following PF-key assignments apply for most NATSPOOL screens:
