Scenario 3: Unix Client

CONNX Data Integration Suite 14.7.0 | Enterprise Planning Guide | CONNX Scenarios | Scenario 3: Unix Client

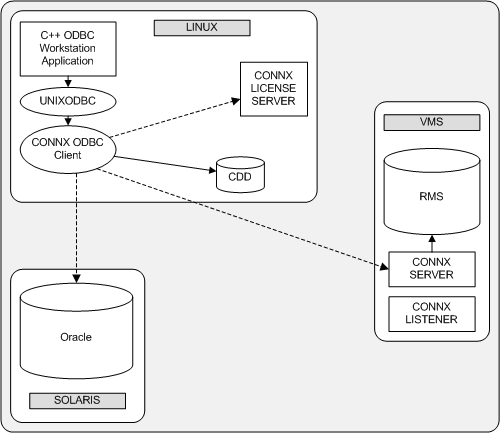

This scenario shows a C++ ODBC Application using UNIXODBC on Linux connecting to Oracle on Solaris and RMS on VMS.

In this scenario, the application is using UNIXODBC to connect to the CONNX ODBC Client directly. The CONNX Client has a direct connection to the CDD and remote connections to the CONNX Server, an Oracle database and the CONNX license server.

There are no Windows machines in our configuration diagram. When you need to configure the license server or the CDD, there must be at least one Windows machine available. It can be removed when configuration is complete.

UNIXODBC is the driver manager in our scenario. If the driver configuration manager allows it, any available ODBC compliant driver manager should work.

In the example, the license server runs on the user application machine. This is a very common configuration. Only one CONNX License server will be installed on the LAN.
