To access the Directory Server administration area of the System Management
Hub (SMH):
Make sure you have started and logged into the System Management Hub.
Select the name of the managed host on which the Directory Server is installed.

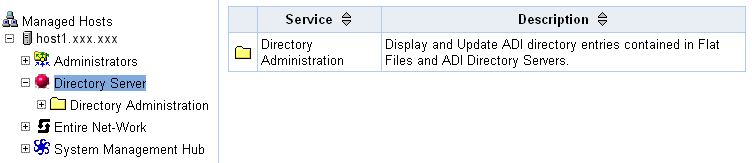

Expand the tree-view frame for the managed host by clicking on the plus sign (+) to the left of its name.
Select and expand "Directory Server" in the tree-view under the managed host.
The Software AG Directory Server area of the System Management Hub becomes available to you.
Select and expand Directory Administration in the tree-view frame.
Two types of Software AG Directory Server administration are listed: Flat Files and Directory Servers.
Note:
Software AG products do not use the Flat File
maintenance option of the Software AG Directory Server administration. All administration tasks
are performed using the Directory Servers maintenance
option. For this reason, only the Directory Servers maintenance
options are described in this document.
Select and expand Directory Servers in the tree-view frame.
The Directory Server administration area appears in the detail-view frame.
Note:
The "No Directories have been defined!"
error message displays in the detail-view frame and is expected if no directory
servers have been defined.
The following commands are available in the Commands menu of the Directory Server administration area or by right-clicking on Directory Servers in tree-view:
Note:
You must have Directory Servers
selected in the tree-view frame to see these commands. These commands appear in
the Commands menu or when you right-click on
Directory Servers in the tree-view frame.
| Button | Use this command to: |
|---|---|
| Add Directory Server | Add a new directory server, linked to this SMH. |
| Set Trace Options | Set trace options for the directory servers linked to this SMH. |
| Refresh | Refresh the screen. |
